Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 17.15 | |
General part information

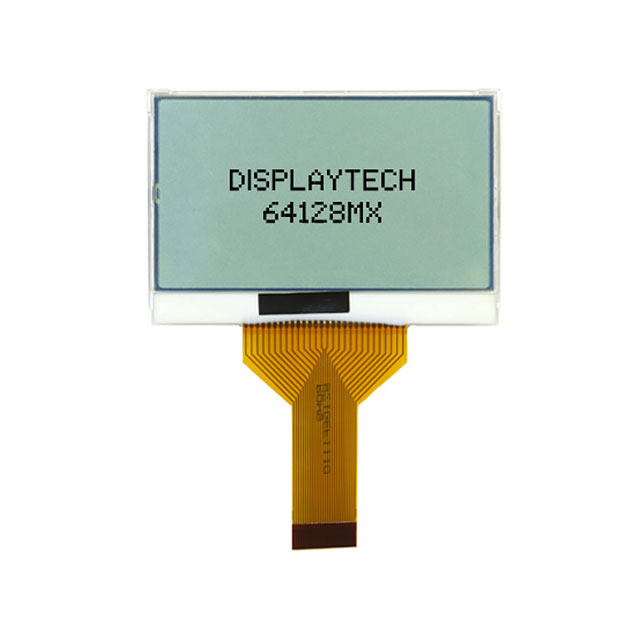

Graphic LCD Display Module Transflective FSTN - Film Super-Twisted Nematic 128 x 64
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 64128MX FC BW-3 | 64128 Series |
|---|---|---|
| Backlight | LED - White | LED - White, LED, Red, Green, Blue |
| Display Mode | Transflective | Transflective |
| Display Type | FSTN - Film Super-Twisted Nematic | FSTN - Film Super-Twisted Nematic |
| Dot Pixels [x] | 128 | 128 |
| Dot Pixels [y] | 64 | 64 |
| Dot Size | - | 0.33 - 0.4 mm |
| Dot Size | - | 0.33 mm |
| Dot Size | - | 0.4 mm |
| Dot Size [custom] | 0.48 mm | 0.48 mm |
| Dot Size [custom] | 0.48 mm | 0.48 mm |
| Viewing Area | - | 25 mm |
| Viewing Area [x] | 70 mm | 60.6 - 70 mm |
| Viewing Area [y] | 40 mm | 33.1 - 50 mm |
DISPLAY LCD 128X64 TRANSFL
| Part | Backlight | Display Type | Dot Pixels [y] | Dot Pixels [x] | Display Mode | Viewing Area [y] | Viewing Area [z] | Dot Size [y] | Dot Size [x] | Dot Size [custom] | Dot Size [custom] | Viewing Area [x] | Dot Size [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Displaytech 64128KX FC BW-3 | LED - White | FSTN - Film Super-Twisted Nematic | 64 | 128 | Transflective | 50 mm | 25 mm | 0.33 mm | 0.33 mm | ||||
Displaytech 64128MX FC BW-3 | LED - White | FSTN - Film Super-Twisted Nematic | 64 | 128 | Transflective | 40 mm | 0.48 mm | 0.48 mm | 70 mm | ||||
Displaytech 64128M FC BW-RGB | Blue, Green, LED, Red | FSTN - Film Super-Twisted Nematic | 64 | 128 | Transflective | 40 mm | 0.48 mm | 0.48 mm | 70 mm | ||||
Displaytech 64128N FCBW-3LP | LED - White | FSTN - Film Super-Twisted Nematic | 64 | 128 | Transflective | 50 mm | 25 mm | 0.33 mm | 0.33 mm | ||||
Displaytech 64128K FC BW-RGB | Blue, Green, LED, Red | FSTN - Film Super-Twisted Nematic | 64 | 128 | Transflective | 50 mm | 25 mm | 0.33 mm | 0.33 mm | ||||
Displaytech 64128L FC BW-3 | LED - White | FSTN - Film Super-Twisted Nematic | 64 | 128 | Transflective | 33.1 mm | 0.4 mm | 60.6 mm | 0.4 mm | ||||
Displaytech 64128M FC BW-3 | LED - White | FSTN - Film Super-Twisted Nematic | 64 | 128 | Transflective | 40 mm | 0.48 mm | 0.48 mm | 70 mm | ||||
Displaytech 64128K FC BW-3 | LED - White | FSTN - Film Super-Twisted Nematic | 64 | 128 | Transflective | 50 mm | 25 mm | 0.33 mm | 0.33 mm |
