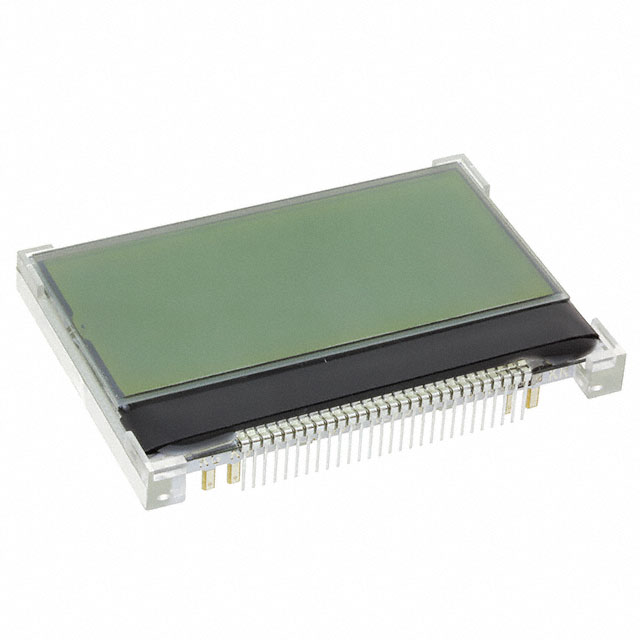

64128K FC BW-RGB

Active

Displaytech

GRAPHIC MODULE FSTN 128X64PIXELS 28-PIN

Search across all available documentation for this part.

Active

Displaytech

GRAPHIC MODULE FSTN 128X64PIXELS 28-PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transflective FSTN - Film Super-Twisted Nematic 128 x 64

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	64128K FC BW-RGB	64128 Series

Backlight	LED, Red, Green, Blue	LED - White, LED, Red, Green, Blue
Display Mode	Transflective	Transflective
Display Type	FSTN - Film Super-Twisted Nematic	FSTN - Film Super-Twisted Nematic
Dot Pixels [x]	128	128
Dot Pixels [y]	64	64
Dot Size	-	0.48 mm
Dot Size	-	0.48 mm
Dot Size	-	0.4 mm
Dot Size [x]	0.33 mm	0.33 mm
Dot Size [y]	0.33 mm	0.33 - 0.4 mm
Viewing Area	-	60.6 - 70 mm
Viewing Area [y]	50 mm	33.1 - 50 mm
Viewing Area [z]	25 mm	25 mm

DISPLAY LCD 128X64 TRANSFL

Part	Backlight	Display Type	Dot Pixels [y]	Dot Pixels [x]	Display Mode	Viewing Area [y]	Viewing Area [z]	Dot Size [y]	Dot Size [x]	Dot Size [custom]	Dot Size [custom]	Viewing Area [x]	Dot Size [z]
Displaytech 64128KX FC BW-3	LED - White	FSTN - Film Super-Twisted Nematic	64	128	Transflective	50 mm	25 mm	0.33 mm	0.33 mm
Displaytech 64128MX FC BW-3	LED - White	FSTN - Film Super-Twisted Nematic	64	128	Transflective	40 mm				0.48 mm	0.48 mm	70 mm
Displaytech 64128M FC BW-RGB	Blue, Green, LED, Red	FSTN - Film Super-Twisted Nematic	64	128	Transflective	40 mm				0.48 mm	0.48 mm	70 mm
Displaytech 64128N FCBW-3LP	LED - White	FSTN - Film Super-Twisted Nematic	64	128	Transflective	50 mm	25 mm	0.33 mm	0.33 mm
Displaytech 64128K FC BW-RGB	Blue, Green, LED, Red	FSTN - Film Super-Twisted Nematic	64	128	Transflective	50 mm	25 mm	0.33 mm	0.33 mm
Displaytech 64128L FC BW-3	LED - White	FSTN - Film Super-Twisted Nematic	64	128	Transflective	33.1 mm		0.4 mm				60.6 mm	0.4 mm
Displaytech 64128M FC BW-3	LED - White	FSTN - Film Super-Twisted Nematic	64	128	Transflective	40 mm				0.48 mm	0.48 mm	70 mm
Displaytech 64128K FC BW-3	LED - White	FSTN - Film Super-Twisted Nematic	64	128	Transflective	50 mm	25 mm	0.33 mm	0.33 mm
