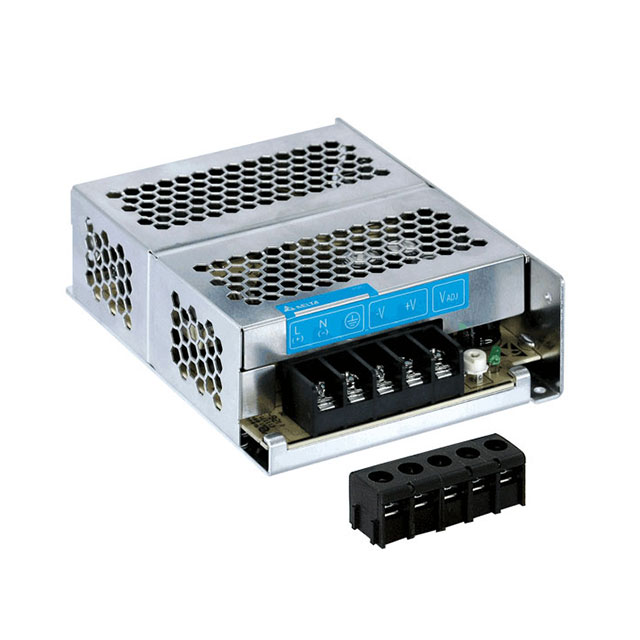

PMC-24V050W1AJ

Obsolete

Delta Electronics

AC/DC CONVERTER 24V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Supplies Catalog, Standard Standard Power Supplies UL Cert +3

PMC-24V050W1AJ

Obsolete

Delta Electronics

AC/DC CONVERTER 24V 50W

Deep-Dive with AI

DocumentsPower Supplies Catalog, Standard Standard Power Supplies UL Cert +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PMC-24V050W1AJ

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CCC, NEMKO, CE
Current - Output 1	2.1 A
Efficiency	86 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	50 W
Size / Dimension [x]	5.04 "
Size / Dimension [x]	128 mm
Size / Dimension [y]	97 mm
Size / Dimension [y]	3.82 in
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

PMC-24 Series

Part	Voltage - Isolation	Current - Output 1	Number of Outputs	Applications	Efficiency	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Type	Mounting Type	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Standard Number
Delta Electronics PMC-24V150W1BA	3000 V	6.25 A	1	ITE (Commercial)	86 %	CB CCC CE cURus SIQ	-20 °C	70 °C	24 V	Enclosed	Chassis Mount	150 W	1.5 " 38 mm	3.82 in 97 mm	7.01 in 178 mm
Delta Electronics PMC-24V150W1AJ	3000 V	6.25 A	1	ITE (Commercial)	88 %	CB CE cURus TUV	-10 °C	70 °C	24 V	Enclosed	Chassis Mount	150 W	1.5 " 38 mm	3.82 in 97 mm	7.01 in 178 mm	Adjustable Output DC Input Capable Load Sharing Universal Input
Delta Electronics PMC-24V075W1AA	3000 V	3.125 A	1	ITE (Commercial)	86 %	CB CCC CE cURus TUVgs	-20 °C	70 °C	24 V	Enclosed	Chassis Mount	75 W	38 mm	97 mm	128 mm	Adjustable Output DC Input Capable Universal Input	3.82 in	1.5 "	5.04 "
Delta Electronics PMC-24V600W1BA	3000 V	25 A	1	ITE (Commercial)	80 %	CB Scheme CE EAC EN SIQ UL	-20 °C	70 °C	24 V	Enclosed	Chassis Mount	600 W	61 mm	120 mm	215 mm		4.72 in	2.4 in	8.46 "	50581 55024 55032 60950-1 61000-3-2 61000-3-3 62368-1
Delta Electronics PMC-24V050W1AJ	3000 V	2.1 A	1	ITE (Commercial)	86 %	CB CCC CE cURus NEMKO	-10 °C	70 °C	24 V	Enclosed	Chassis Mount	50 W	38 mm	97 mm	128 mm	Adjustable Output DC Input Capable Universal Input	3.82 in	1.5 "	5.04 "
Delta Electronics PMC-24V035W1AA	3000 V	1.46 A	1	ITE (Commercial)	85 %	CCC CE cURus	-20 °C	70 °C	24 V	Enclosed	Chassis Mount	35 W	38 mm	97 mm	128 mm	Adjustable Output DC Input Capable Universal Input	3.82 in	1.5 "	5.04 "
Delta Electronics PMC-24V100W1AA	3000 V	4.17 A	1	ITE (Commercial)	86 %	CB CCC CE cURus NEMKO	-20 °C	70 °C	24 V	Enclosed	Chassis Mount	100 W	38 mm	97 mm	158 mm	Adjustable Output DC Input Capable Universal Input	3.82 in	1.5 "	6.22 "
