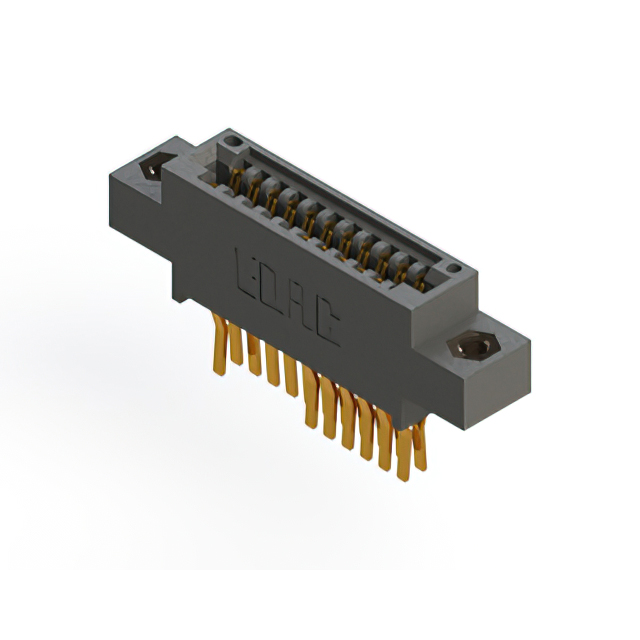

395-022-560-807
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 22 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, M3X0.5, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-022-560-807 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-022 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Read Out | Termination Rows | Contact Type | Contact Material | Material - Insulation | Gender | Number of Rows | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Card Type | Color | Features | Mounting Type | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Gold | Solder | 10 Áin | 0.25 Ám | 22 positions | Dual | 2 | Cantilever | Copper Alloy | Polyester Thermoplastic | Female | 2 | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Black | Card Guides | Through Hole | 2.54 mm | 0.1 in | ||
EDAC Inc. | -40 °C | 105 ░C | Gold | Solder | 10 Áin | 0.25 Ám | 22 positions | Single | 1 | Cantilever | Copper Alloy | Polyester Thermoplastic | Female | 1 | 22 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Top Mount Opening | Non Specified - Single Edge | Black | Through Hole | 2.54 mm | 0.1 in | 2.95 mm | 0.116 in | |
EDAC Inc. | -40 °C | 105 ░C | Gold | Solder | 10 Áin | 0.25 Ám | 22 positions | Dual | 2 | Cantilever | Copper Alloy | Polyester Thermoplastic | Female | 2 | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Black | Card Extender | Board Edge Straddle Mount | 2.54 mm | 0.1 in | ||
EDAC Inc. | -40 °C | 105 ░C | Gold | Solder | 10 Áin | 0.25 Ám | 22 positions | Single | 1 | Cantilever | Copper Alloy | Polyester Thermoplastic | Female | 1 | 22 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Top Mount Opening | Non Specified - Single Edge | Black | Through Hole Right Angle | 2.54 mm | 0.1 in | 2.95 mm | 0.116 in | |
EDAC Inc. | -40 °C | 105 ░C | Gold | Solder | 10 Áin | 0.25 Ám | 22 positions | Dual | 2 | Cantilever | Copper Alloy | Polyester Thermoplastic | Female | 2 | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Top Mount Opening Unthreaded | Non Specified - Dual Edge | Black | Card Extender | Board Edge Straddle Mount | 2.54 mm | 0.1 in | 3.96 mm | 0.156 in |
EDAC Inc. | -40 °C | 105 ░C | Gold | Solder | 10 Áin | 0.25 Ám | 22 positions | Dual | 2 | Cantilever | Copper Alloy | Polyester Thermoplastic | Female | 2 | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Black | Card Guides | Through Hole Right Angle | 2.54 mm | 0.1 in | ||
EDAC Inc. | -40 °C | 105 ░C | Gold | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 22 positions | Dual | 2 | Cantilever | Copper Alloy | Polyester Thermoplastic | Female | 2 | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Black | Card Extender | Board Edge Straddle Mount | 2.54 mm | 0.1 in | ||
EDAC Inc. | -40 °C | 105 ░C | Gold | Solder | 10 Áin | 0.25 Ám | 22 positions | Single | 1 | Cantilever | Copper Alloy | Polyester Thermoplastic | Female | 1 | 22 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Black | Through Hole Right Angle | 2.54 mm | 0.1 in | |||
EDAC Inc. | -40 °C | 105 ░C | Gold | Solder | 10 Áin | 0.25 Ám | 22 positions | Dual | 2 | Cantilever | Copper Alloy | Polyester Thermoplastic | Female | 2 | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Black | Card Guides | Through Hole Right Angle | 2.54 mm | 0.1 in | ||
EDAC Inc. | -40 °C | 105 ░C | Gold | Solder | 10 Áin | 0.25 Ám | 22 positions | Single | 1 | Cantilever | Copper Alloy | Polyester Thermoplastic | Female | 1 | 22 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Black | Through Hole Right Angle | 2.54 mm | 0.1 in |
