0436-0-15-01-03-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .040-.060 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0436-0-15-01-03-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .040-.060 SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0436-0-15-01-03-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.06 in |
| Accepts Pin Diameter [Max] [diameter] | 1.52 mm |
| Accepts Pin Diameter [Min] [diameter] | 1.02 mm |
| Accepts Pin Diameter [Min] [diameter] | 0.04 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 3 mm, 0.118 " |
| Length - Overall | 7.37 mm |
| Length - Overall | 0.29 in |
| Mounting Hole Diameter [diameter] | 0.102 in |
| Mounting Hole Diameter [diameter] | 2.59 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.078 in |
| Pin Hole Diameter [diameter] | 1.98 mm |
| Socket Depth | 0.255 " |
| Socket Depth | 6.48 mm |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.14 | |
| 10 | $ 1.63 | |||
| 25 | $ 1.47 | |||
| 50 | $ 1.36 | |||
| 100 | $ 1.26 | |||
| 250 | $ 1.14 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 0.98 | |||
| 2500 | $ 0.90 | |||
Description
General part information
0436-0 Series

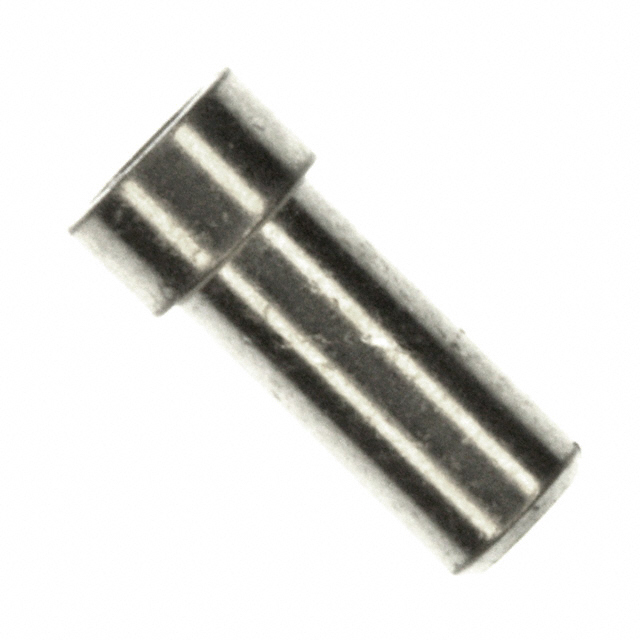

Pin Receptacle Connector 0.040" ~ 0.060" (1.02mm ~ 1.52mm) No Tail Solder
