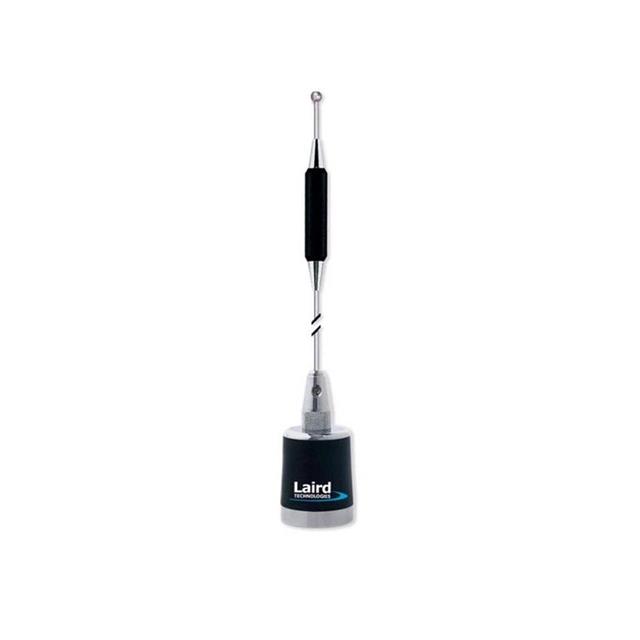

B8965C
ActiveTE Connectivity Raychem Cable Protection
WHIP,MC,CC,896-970MHZ TUN,5,CH,GP,
Deep-Dive with AI
Search across all available documentation for this part.
B8965C
ActiveTE Connectivity Raychem Cable Protection
WHIP,MC,CC,896-970MHZ TUN,5,CH,GP,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B8965C |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 933 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 970 MHz |
| Frequency Range [Min] | 896 MHz |
| Gain | 5 dBi |
| Height (Max) | 339.72 mm |
| Height (Max) [Max] | 13.375 " |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Termination | NMO |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 52.86 | |
| 10 | $ 49.31 | |||
| 25 | $ 47.25 | |||
| 100 | $ 42.82 | |||
Description
General part information
B8965 Series
Whip Antenna, Single Band, Cellular / ISM / Vehicular, External Mount, Stud/Screw/Lug Mount, NMO, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
