Q-0902Z0008003M
ActiveAmphenol Custom Cable

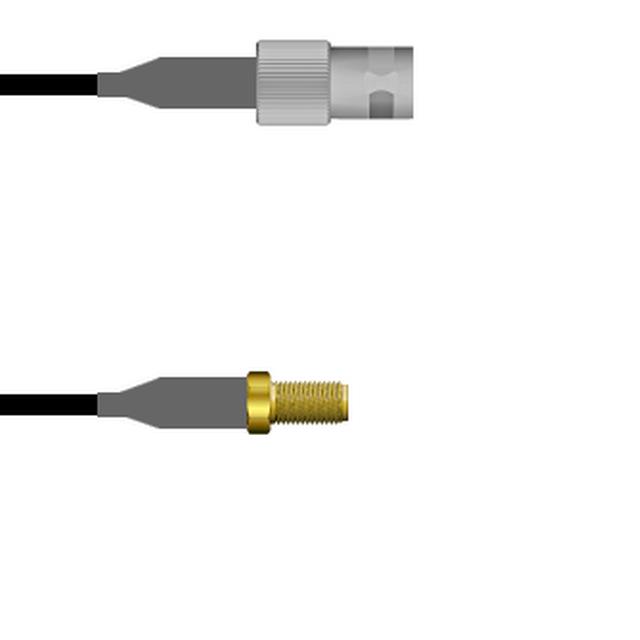

CBL ASSY BNC-SMA JACK-JACK 9.8'
Deep-Dive with AI
Search across all available documentation for this part.
Q-0902Z0008003M
ActiveAmphenol Custom Cable
CBL ASSY BNC-SMA JACK-JACK 9.8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0902Z0008003M |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RG-58 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 3 m |
| Length | 118.1 in |
| Length | 9.8 ' |
| Overall Impedance | 50 Ohms |
| Style | BNC to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 84.44 | |
| 25 | $ 78.59 | |||
| 50 | $ 72.73 | |||
| 100 | $ 67.72 | |||
| 250 | $ 63.54 | |||
Description
General part information
Q-0902Z0 Series
Cable Assembly Coaxial BNC to SMA RG-58 118.1" (3.0m) 9.8'
Documents
Technical documentation and resources
No documents available
