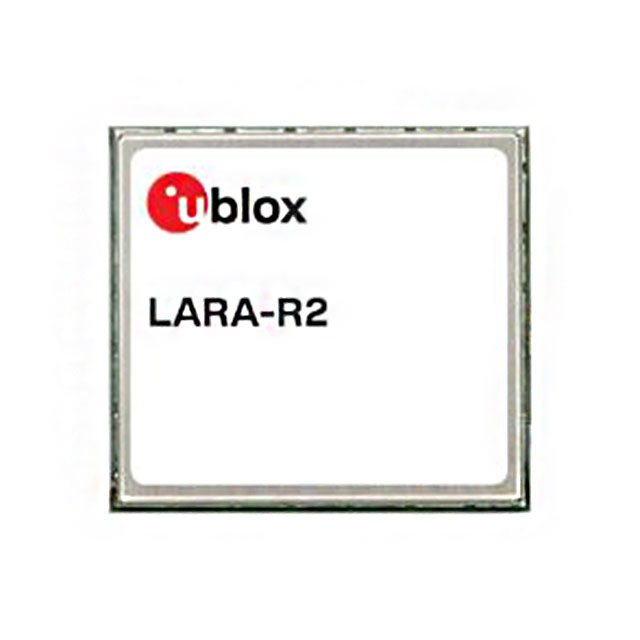

LARA-R203-02B

Obsolete

u-blox

RF TXRX MOD CELL NAV CAST SMD

Search across all available documentation for this part.

Obsolete

u-blox

RF TXRX MOD CELL NAV CAST SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LARA-R203-02B	LARA-R203 Series

Antenna Type	Antenna Not Included, Castellation	Antenna Not Included, Castellation
Current - Receiving	-	50 mA
Current - Receiving	-	540 mA
Current - Transmitting [Max]	540 mA	540 mA
Current - Transmitting [Min]	50 mA	50 mA
Data Rate	-	10.3 Mbps
Frequency	1900 MHz, 700 MHz, 1.7 GHz	1.7 - 1900 MHz
Modulation	-	QPSK
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	100-SMD Module	100-SMD Module
Power - Output	-	23 dBmW
Protocol	4G LTE	4G LTE
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Sensitivity	-110 dBm	-115 - -110 dBm
Serial Interfaces	USB, I2C, UART	SDIO, GPIO, UART, USB, I2C
Voltage - Supply	3.8 V	3.8 V
Voltage - Supply	-	3.3 V
Voltage - Supply	-	4.4 V

RF TXRX MOD CELL CAST IOT SMD

Part	Current - Receiving [Min]	Current - Receiving [Max]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Output	Protocol	Current - Transmitting [Max]	Current - Transmitting [Min]	Serial Interfaces	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Sensitivity	Package / Case	Data Rate	Modulation	Frequency	Voltage - Supply
u-blox LARA-R203-03B	50 mA	540 mA	Surface Mount	3.3 V	4.4 V	23 dBmW	4G LTE	540 mA	50 mA	GPIO, I2C, SDIO, UART, USB	Antenna Not Included, Castellation	85 °C	-40 °C	Cellular	-115 dBm	100-SMD Module	10.3 Mbps	QPSK	1.7 GHz, 700 MHz, 1900 MHz
u-blox LARA-R203-02B			Surface Mount				4G LTE	540 mA	50 mA	I2C, UART, USB	Antenna Not Included, Castellation	85 °C	-40 °C	Cellular, Navigation	-110 dBm	100-SMD Module			1.7 GHz, 700 MHz, 1900 MHz	3.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular, Navigation 4G LTE Transceiver Module 700MHz, 1.7GHz, 1.9GHz Antenna Not Included, Castellation Surface Mount
