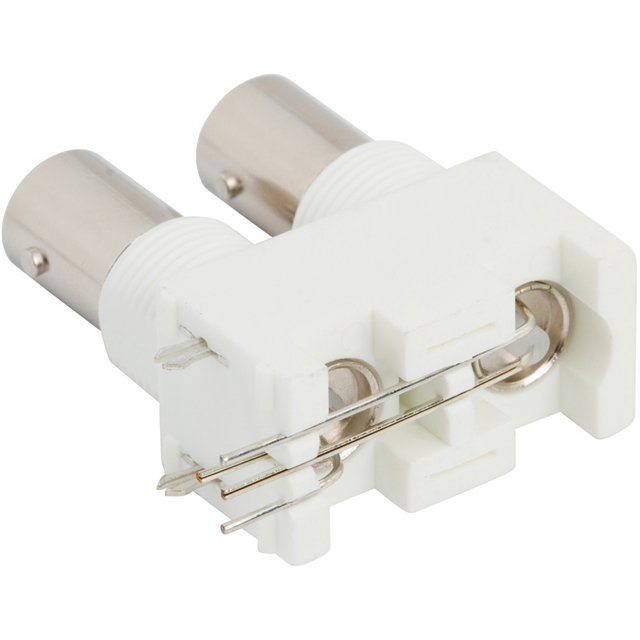

CONN BNC JACK R/A 50OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

112704

Active

Amphenol RF

CONN BNC JACK R/A 50OHM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112704

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Beryllium Copper
Center Contact Plating	Tin
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polypropylene (PP)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	White, Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

1127 Series

Part	Body Finish	Mating Cycles	Center Contact Material	Number of Ports	Fastening Type	Shield Termination	Dielectric Material	Contact Termination	Impedance	Connector Type	Voltage Rating	Housing Color	Center Contact Plating	Mounting Type	Body Material	Connector Style	Frequency - Max [Max]	Adapter Type	Adapter Series	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Style	Mounting Feature	Conversion Type	Convert From (Adapter End)	Cable Group	Insertion Loss	Features	For Use With/Related Products	Accessory Type	Color	Includes
Amphenol RF 112778	Nickel	500	Beryllium Copper	1	Bayonet Lock	Solder	Polytetrafluoroethylene (PTFE)	Solder	75 Ohms	Female Socket Jack	500 V	Silver	Gold	Through Hole Right Angle	Brass	BNC	4 GHz
Amphenol RF 112769	Nickel		Beryllium Copper		Bayonet Lock Snap-On		Polytetrafluoroethylene (PTFE)		75 Ohms				Gold		Brass		3 GHz	Plug to Jack	BNC to BNC	BNC Plug Male Pin	-65 ░C	165 °C	1 Connector 1 Lockwasher 1 Nut	Straight	Bulkhead	Same Series	BNC Jack Female Socket
Amphenol RF 112700	Nickel	500	Beryllium Copper	1	Bayonet Lock	Crimp	Polytetrafluoroethylene (PTFE)	Crimp	50 Ohms	Male Pin Plug	500 V	Silver	Gold	Free Hanging (In-Line)	Brass	BNC	4 GHz						1 Connector 1 Contact 1 Ferrule					LMR-300	0.2 dB
Amphenol RF 112713	Nickel														Brass	BNC														Chain	BNC Plugs	Cap (Cover)	Silver
Amphenol RF 112719	Nickel	500	Phosphor Bronze	1	Bayonet Lock	Crimp	Polytetrafluoroethylene (PTFE)	Crimp		Female Socket Jack	500 V	Silver	Gold		Brass	BNC	4 GHz						1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve		Bulkhead - Front Side Nut			188A 316 RG-174	0.2 dB
Amphenol RF 112708	Nickel	500	Phosphor Bronze	1	Bayonet Lock	Crimp	Polytetrafluoroethylene (PTFE)	Crimp	50 Ohms	Female Socket Jack	500 V	Silver	Gold	Free Hanging (In-Line)	Brass	BNC	4 GHz						1 Connector 1 Contact 1 Ferrule					213 214 225 302 393 87 8A 9 9A 9B RG-8	0.2 dB
Amphenol RF 112704	Nickel	500	Beryllium Copper	2	Bayonet Lock	Solder	Polypropylene (PP)	Solder	50 Ohms	Female Socket Jack	500 V	Silver White	Tin	Panel Mount Right Angle Through Hole	Zinc Die Cast	BNC	4 GHz				-55 °C	85 °C			Bulkhead
Amphenol RF 112740	Gold	500	Beryllium Copper	1	Bayonet Lock	Solder	Polytetrafluoroethylene (PTFE)	Solder	75 Ohms	Female Socket Jack	500 V	Gold	Gold	Board Edge End Launch Panel Mount	Brass	BNC	4 GHz						1 Connector 1 Lockwasher 1 Nut		Bulkhead - Front Side Nut
Amphenol RF 112721	Nickel	500	Brass	1	Bayonet Lock	Crimp	Polytetrafluoroethylene (PTFE)	Crimp Solder	75 Ohms	Male Pin Plug	500 V	Silver	Gold	Free Hanging (In-Line)	Brass	BNC	4 GHz																	1 pcs 1 pcs 1 pcs 1 pcs 1 pcs
Amphenol RF 112707	Nickel	500	Beryllium Copper	2	Bayonet Lock	Solder	Polypropylene (PP)	Solder	75 Ohms	Female Socket Jack	500 V	Silver	Gold	Panel Mount Right Angle Through Hole	Zinc Die Cast	BNC	4 GHz								Bulkhead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 10.15

Description

General part information

1127 Series

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
