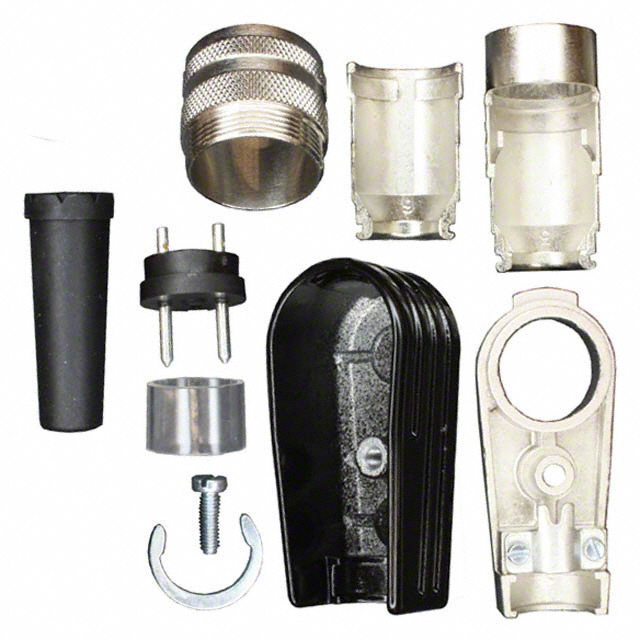

T 3200 005

Obsolete

Amphenol Tuchel Industrial

CONN PLUG MALE 2P SILV SLDR CUP

Search across all available documentation for this part.

Obsolete

Amphenol Tuchel Industrial

CONN PLUG MALE 2P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	T 3200 005

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	5 A
Features	Strain Relief
Ingress Protection	IP40
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-2
Shielding	Shielded
Voltage Rating	250 VDC

Part	Current Rating (Amps)	Features	Color	Voltage Rating	Ingress Protection	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Shell Material	Shell Finish	Orientation	Shielding	Contact Finish - Mating	Number of Positions	Primary Material	Connector Type
Amphenol Tuchel Industrial T 3200 004	5 A	Cable Clamp Strain Relief	Silver	250 VDC	IP40	Free Hanging (In-Line)	100 °C	-40 °C	M16-2	Die Cast	Nickel	Keyed	Shielded	Silver	2	Metal	Male Pins Plug
Amphenol Tuchel Industrial T 3200 013	5 A	Strain Relief	Silver	250 VDC	IP40	Free Hanging (In-Line)	100 °C	-40 °C	M16-2	Die Cast	Nickel	Keyed	Shielded	Silver	2	Metal	Male Pins Plug
Amphenol Tuchel Industrial T 3200 005	5 A	Strain Relief	Silver	250 VDC	IP40	Free Hanging (In-Line) Right Angle	100 °C	-40 °C	M16-2	Die Cast	Nickel	Keyed	Shielded	Silver	2	Metal	Male Pins Plug
Amphenol Tuchel Industrial T 3200 002	5 A	Strain Relief	Silver	250 VDC	IP40	Free Hanging (In-Line)	100 °C	-40 °C	M16-2	Die Cast	Nickel	Keyed	Shielded	Silver	2	Metal	Male Pins Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Position Circular Connector Plug, Male Pins Solder Cup
