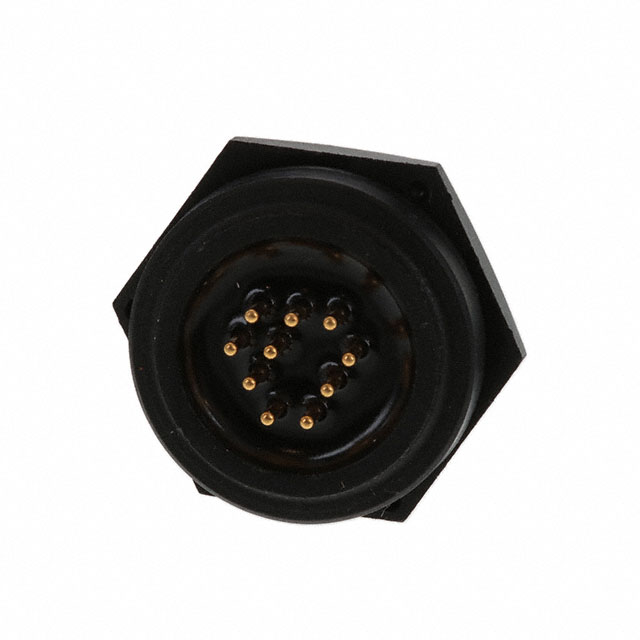

W4281-10SG-3ES

Active

Conxall/Switchcraft

CONN RCPT FMALE 10POS SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 10POS SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

No documents available

Specification	W4281-10SG-3ES	W4281-10 Series

Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	10	10
Orientation	E	E
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	600 V	600 V

Part	Connector Type	Insert Material	Mounting Type	Primary Material	Mounting Feature	Termination	Contact Material	Number of Positions	Voltage Rating	Shielding	Fastening Type	Orientation	Color	Contact Finish - Mating
Conxall/Switchcraft W4281-10PG-3ES	Male Pins, Receptacle	Thermoplastic	Panel Mount, Through Hole	Plastic	Bulkhead - Front Side Nut	Solder	Brass	10	600 V	Unshielded	Bayonet Lock	E	Black	Gold
Conxall/Switchcraft W4281-10SG-3ES	Receptacle, Female Sockets	Thermoplastic	Panel Mount, Through Hole	Plastic	Bulkhead - Front Side Nut	Solder	Brass	10	600 V	Unshielded	Bayonet Lock	E	Black	Gold
