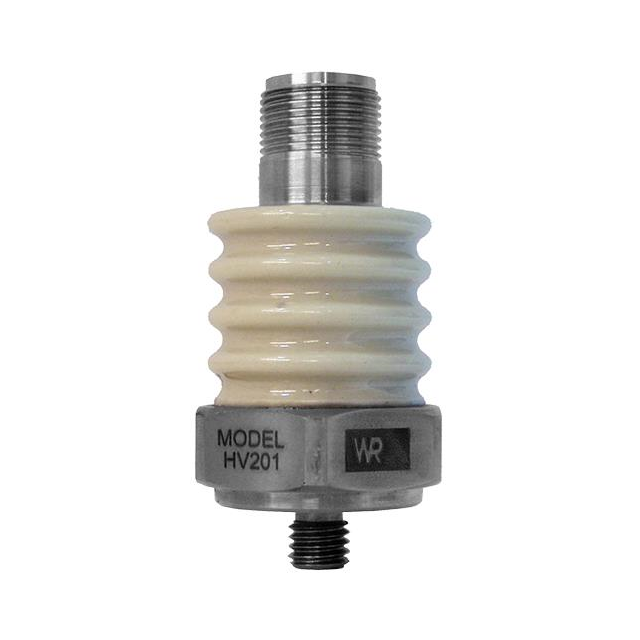

HV201LF-500
ActiveAmphenol Wilcoxon Sensing Technologies
ACCEL IEPE SENSOR
HV201LF-500
ActiveAmphenol Wilcoxon Sensing Technologies
ACCEL IEPE SENSOR
Description
General part information
HV201 Series
Accelerometer X Axis ±10g 0.1Hz ~ 11kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | HV201LF-500 |
|---|---|
| Acceleration Range (Maximum) | 10 g |
| Acceleration Range (Minimum) | -10 g |
| Axis | X |
| Bandwidth (Max) | 11 kHz |
| Bandwidth (Min) | 0.1 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -50 °C |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Sensitivity (mV/g) | 500 mV/g |
| Type | Analog |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 18 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
