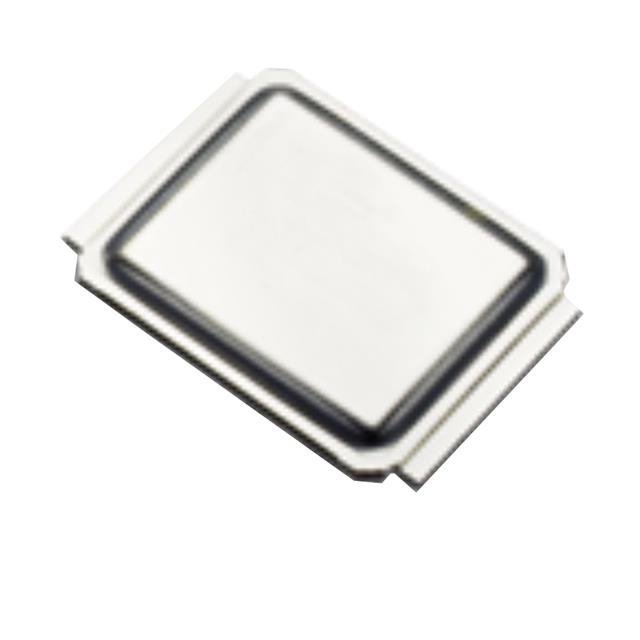

AUIRF7737L2TR

Active

Infineon Technologies

INFINEON’S AUIRF7737L2TR IS IDEAL FOR 12V POWER SUPPLY AND BRUSHLESS MOTOR DRIVE APPLICATIONS. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Search across all available documentation for this part.

Active

Infineon Technologies

INFINEON’S AUIRF7737L2TR IS IDEAL FOR 12V POWER SUPPLY AND BRUSHLESS MOTOR DRIVE APPLICATIONS. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Technical Specifications

Parameters and characteristics for this part

Specification	AUIRF7737L2TR

Current - Continuous Drain (Id) @ 25°C	156 A, 31 A
Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	134 nC
Input Capacitance (Ciss) (Max) @ Vds	5469 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	DirectFET™ Isometric L6
Power Dissipation (Max)	83 W, 3.3 W
Rds On (Max) @ Id, Vgs	1.9 mOhm
Supplier Device Package	DIRECTFET L6
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4 V

Part	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Power Dissipation (Max)	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	FET Type	Current - Continuous Drain (Id) @ 25°C	Technology
Infineon Technologies AUIRF7737L2TR	DIRECTFET L6	5469 pF	20 V	-55 °C	175 ░C	DirectFET™ Isometric L6	Surface Mount	134 nC	40 V	1.9 mOhm	3.3 W 83 W	10 V	4 V	N-Channel	31 A 156 A	MOSFET (Metal Oxide)
Infineon Technologies AUIRF7737L2TR	DIRECTFET L6	5469 pF	20 V	-55 °C	175 ░C	DirectFET™ Isometric L6	Surface Mount	134 nC	40 V	1.9 mOhm	3.3 W 83 W	10 V	4 V	N-Channel	31 A 156 A	MOSFET (Metal Oxide)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 40 V 31A (Ta), 156A (Tc) 3.3W (Ta), 83W (Tc) Surface Mount DIRECTFET L6
