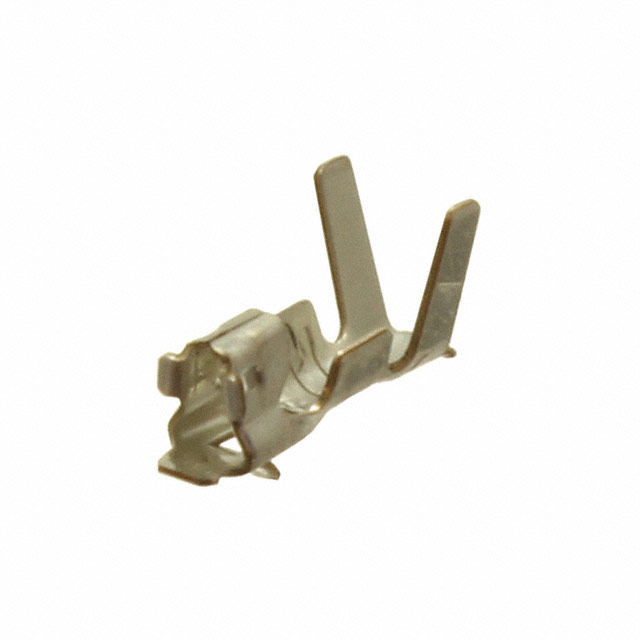

SXH-001T-P0.6N
ActiveJST Sales America Inc.
CONN SOCKET 22-26AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
SXH-001T-P0.6N
ActiveJST Sales America Inc.
CONN SOCKET 22-26AWG CRIMP TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SXH-001T-P0.6N |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.11 | |
| 10 | $ 0.09 | |||
| 25 | $ 0.08 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.07 | |||
| 250 | $ 0.06 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 2500 | $ 0.05 | |||
| Tape & Reel (TR) | 5000 | $ 0.03 | ||
| 10000 | $ 0.03 | |||
| 15000 | $ 0.03 | |||
| 25000 | $ 0.02 | |||
| 35000 | $ 0.02 | |||
| 50000 | $ 0.02 | |||
| 125000 | $ 0.02 | |||
| 250000 | $ 0.02 | |||
| 500000 | $ 0.02 | |||
Description
General part information
SXH-001 Series
Socket Contact Tin 22-26 AWG Crimp Stamped
