XWA4LUY147D

Active

SunLED

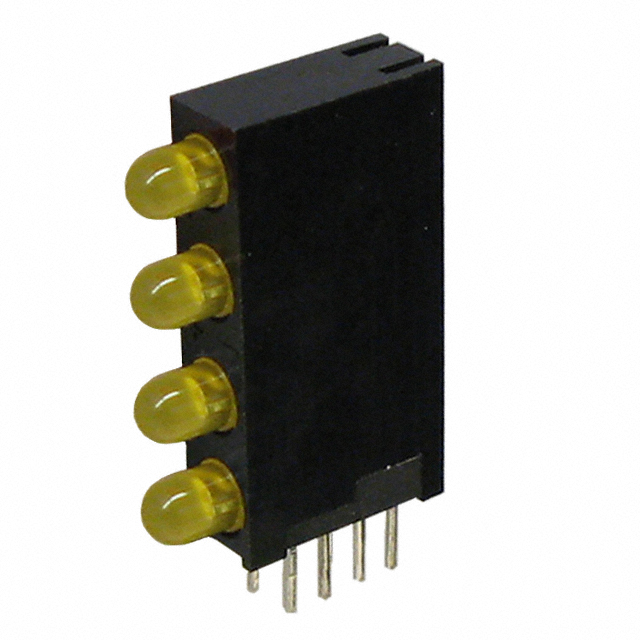

LED CBI 3MM QUAD YELLOW RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XWA4LUY147D

Active

SunLED

LED CBI 3MM QUAD YELLOW RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XWA4LUY147D

Color	Yellow (x 4)
Configuration	4 High
Current	140 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	14 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle [custom]	40 °
Voltage Rating	1.95 V
Wavelength - Peak	590 nm

XWA4LUY147 Series

Part	Viewing Angle [custom]	Wavelength - Peak	Configuration	Color	Lens Size	Lens Size	Lens Type	Millicandela Rating	Lens Style	Current	Mounting Type	Voltage Rating
SunLED XWA4LUY147D	40 °	590 nm	4 High	Yellow (x 4)	3 mm	T-1	Diffused Tinted	14 mcd	Round with Domed Top	140 mA	Through Hole Right Angle	1.95 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	600	$ 0.81

Description

General part information

XWA4LUY147 Series

LED Circuit Board Indicator LED Circuit Board Indicator 4 High Yellow (x 4) Diffused, Tinted 1.95V 140mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
