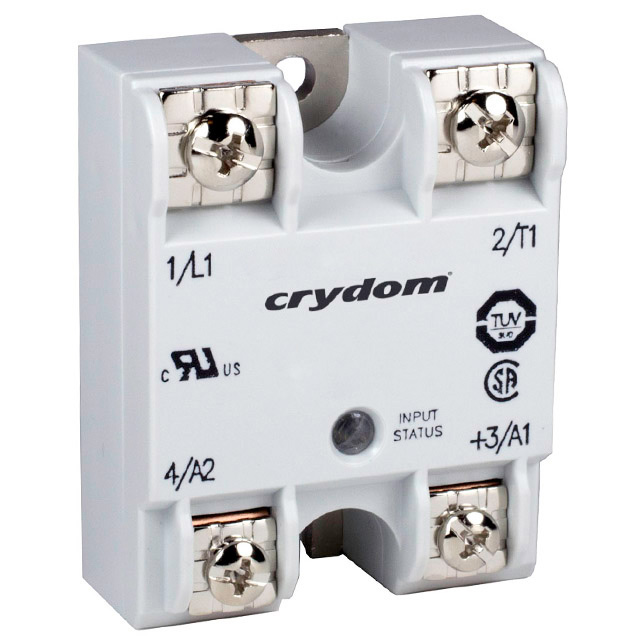

84134131

Active

Sensata-Crydom

SSR RELAY SPST-NO 75A 48-660V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 75A 48-660V

Technical Specifications

Parameters and characteristics commom to parts in this series

SOLID STATE RELAY, 125 A, 660 VAC, PANEL MOUNT, SCREW, ZERO CROSSING

Part	Load Current	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Approval Agency
Sensata-Crydom 84134180	125 A	Hockey Puck	32 V	4 V	Screw Terminal	-40 °C	80 C	Chassis Mount	AC, Zero Cross	48 V	660 V	CE, CSA, cURus, TUV
Sensata-Crydom 84134140	100 A	Hockey Puck	32 V	4 V	Screw Terminal	-40 °C	80 C	Chassis Mount	AC, Zero Cross	48 V	660 V	CE, CSA, cURus, TUV
Sensata-Crydom 84134120H	50 A	Hockey Puck	32 V	4 V	Screw Terminal	-40 °C	80 C	Chassis Mount	AC, Zero Cross	48 V	660 V	CE, CSA, cURus, TUV
Sensata-Crydom 84134141	100 A	Hockey Puck	280 VAC/DC	90 VAC	Screw Terminal	-40 °C	80 C	Chassis Mount	AC, Zero Cross	48 V	660 V	CE, CSA, cURus, TUV
Sensata-Crydom 84134180H	125 A	Hockey Puck	32 V	4 V	Screw Terminal	-40 °C	80 C	Chassis Mount	AC, Zero Cross	48 V	660 V	CE, CSA, cURus, TUV
Sensata-Crydom 84134110K	25 A	Hockey Puck	32 V	3 V	Screw Terminal	-40 °C	80 C	Chassis Mount	AC, Zero Cross	48 V	660 V	CE, CSA, cURus, TUV
Sensata-Crydom 84134131	75 A	Hockey Puck	280 VAC/DC	90 VAC	Screw Terminal	-40 °C	80 C	Chassis Mount	AC, Zero Cross	48 V	660 V	CE, CSA, cURus, TUV
Sensata-Crydom 84134181	125 A	Hockey Puck	280 VAC/DC	90 VAC	Screw Terminal	-40 °C	80 C	Chassis Mount	AC, Zero Cross	48 V	660 V	CE, CSA, cURus, TUV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 146.45

General part information

Solid State SPST-NO (1 Form A) Hockey Puck
