EAC309X

Active

Switchcraft Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	EAC309X

Accomodates a Fuse	False
Approval Agency	DEMKO, SEMKO, SEV, SETI, NEMKO
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Features	Front or Rear Side Mount
Filter Type	Unfiltered - Commercial
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions	Variable Size
Termination	Solder Eyelet
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT RCPT IEC320-C14 PNL SLDR

Part	Accomodates a Fuse	Panel Cutout Dimensions	Connector Type	Connector Style	Current Rating - Appliance Inlet	Filter Type	Mounting Type	Termination	Features	Approval Agency	Voltage Rating - Appliance Inlet
Switchcraft Inc. EAC309X		Variable Size	Male Blades, Receptacle	IEC 320-C14	10 A	Unfiltered - Commercial	Flange, Panel Mount	Solder Eyelet	Front or Rear Side Mount	DEMKO, NEMKO, SEMKO, SETI, SEV	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

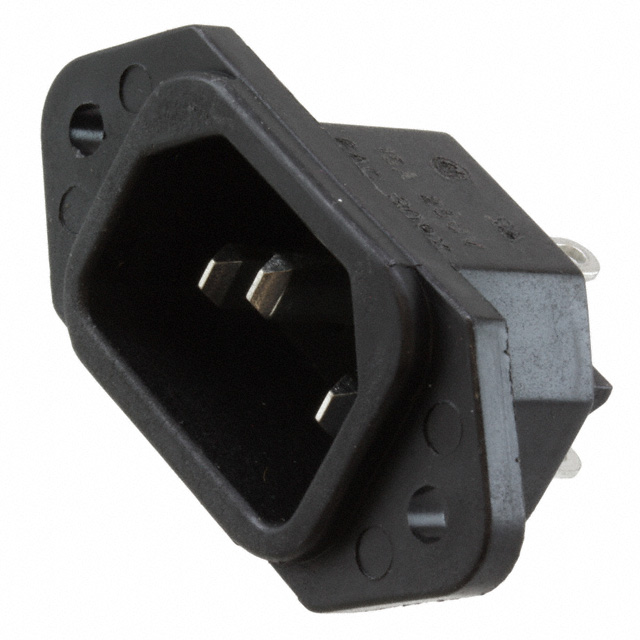

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange

Technical documentation and resources
