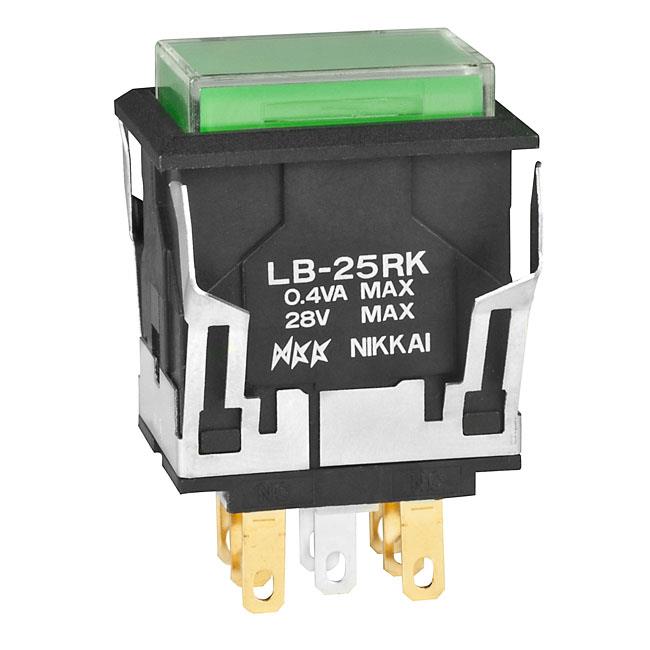

LB25RKG01-5F24-JF - LB25RKG01-5F24-JF

LB25RKG01-5F24-JF

Active
NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
LB25RKG01-5F24-JF - LB25RKG01-5F24-JF

LB25RKG01-5F24-JF

Active
NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationLB25RKG01-5F24-JF
Actuator MarkingNo Marking
Actuator TypeRectangular, Button
CircuitDPDT
Color - Actuator/CapClear
Current Rating (Amps)0.4 VA
Electrical Life100000 Cycles
Illumination Type, ColorLED, Green
Illumination Voltage (Nominal)24 V
Mechanical Life1000000 Cycles
Mounting TypePanel Mount, Snap-In
Operating Temperature [Max]50 °C
Operating Temperature [Min]-25 °C
Panel Cutout Dimensions [x]22.4 mm
Panel Cutout Dimensions [y]16.2 mm
Switch FunctionOn-Mom
Termination Style0.11 in
Termination StyleQuick Connect, Solder
Termination Style2.8 mm
TypeIlluminated, Standard
Voltage Rating - AC28 V
Voltage Rating - DC28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 30.25
10$ 27.47
25$ 26.24
50$ 24.85
100$ 23.92
250$ 22.38
500$ 19.10
NewarkEach 1$ 53.37
5$ 47.59
10$ 45.97
25$ 43.43
50$ 40.43
100$ 35.81
250$ 32.11

Description

General part information

LB25RKG01 Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
