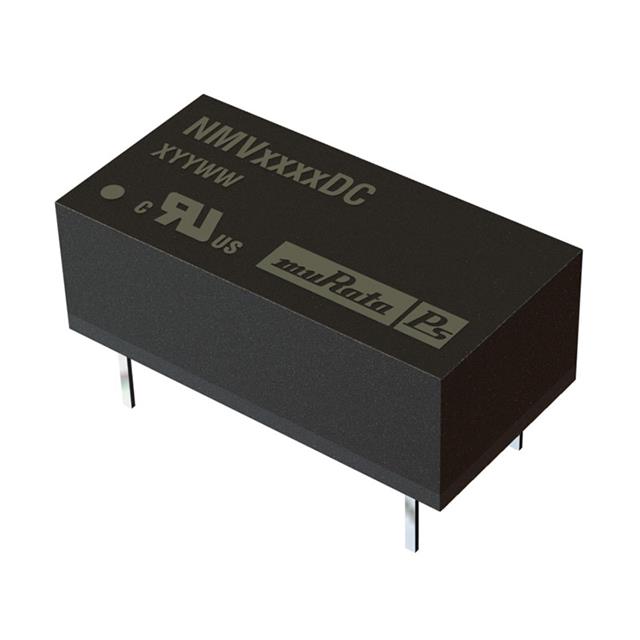

NMV0512DC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NMV0512DC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NMV0512DC	NMV05 Series

	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	33 - 55 mA
Current - Output (Max) [Max]	42 mA	42 - 200 mA
Current - Output (Max) [Max]	42 mA	42 mA
Efficiency	78 %	68 - 79 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module, 6 Leads	7-SIP Module, 5 Leads, 14-DIP Module, 6 Leads, 7-SIP Module, 4 Leads
Size / Dimension	-	6 mm
Size / Dimension	-	0.39 in
Size / Dimension	-	10 mm
Size / Dimension	-	0.24 in
Size / Dimension	-	19.5 mm
Size / Dimension	-	0.77 "
Size / Dimension [x]	0.77 in, 19.6 mm	0.77 - 19.6 in
Size / Dimension [y]	0.39 ", 9.9 mm	0.39 - 9.9 "
Size / Dimension [z]	0.27 ", 6.9 mm	0.27 - 6.9 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	12 V	5 - 15 V
Voltage - Output 2	-12 V	-15 - -9 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 10.15

NMV05 Series

DC DC CONVERTER +/-9V 1W

Part	Voltage - Output 2	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Voltage - Isolation	Type	Efficiency	Mounting Type	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Murata Power Solutions Inc. NMV0509SC	-9 V	2	5.5 V	4.5 V	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	9 V	7-SIP Module, 5 Leads	ITE (Commercial)	85 °C	-40 °C	55 mA	3000 V	Isolated Module	76 %	Through Hole
Murata Power Solutions Inc. NMV0505DAC
Murata Power Solutions Inc. NMV0509SAC
Murata Power Solutions Inc. NMV0512DC	-12 V	2	5.5 V	4.5 V							12 V	14-DIP Module, 6 Leads	ITE (Commercial)	85 °C	-40 °C		3000 V	Isolated Module	78 %	Through Hole	42 mA	42 mA	0.77 in, 19.6 mm	0.27 ", 6.9 mm	0.39 ", 9.9 mm
Murata Power Solutions Inc. NMV0505SAC
Murata Power Solutions Inc. NMV0509SAC		1	5.5 V	4.5 V	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	9 V	7-SIP Module, 4 Leads	ITE (Commercial)	85 °C	-40 °C		3000 V	Isolated Module	75 %	Through Hole
Murata Power Solutions Inc. NMV0509DAC		1	5.5 V	4.5 V							9 V	14-DIP Module, 6 Leads	ITE (Commercial)	85 °C	-40 °C		3000 V	Isolated Module	75 %	Through Hole			0.77 in, 19.6 mm	0.27 ", 6.9 mm	0.39 ", 9.9 mm
Murata Power Solutions Inc. NMV0512SC
Murata Power Solutions Inc. NMV0515DC	-15 V	2	5.5 V	4.5 V							15 V	14-DIP Module, 6 Leads	ITE (Commercial)	85 °C	-40 °C	33 mA	3000 V	Isolated Module	79 %	Through Hole			0.77 in, 19.6 mm	0.27 ", 6.9 mm	0.39 ", 9.9 mm
Murata Power Solutions Inc. NMV0512SC	-12 V	2	5.5 V	4.5 V	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	12 V	7-SIP Module, 5 Leads	ITE (Commercial)	85 °C	-40 °C		3000 V	Isolated Module	78 %	Through Hole	42 mA	42 mA

Description

General part information

NMV05 Series

Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
