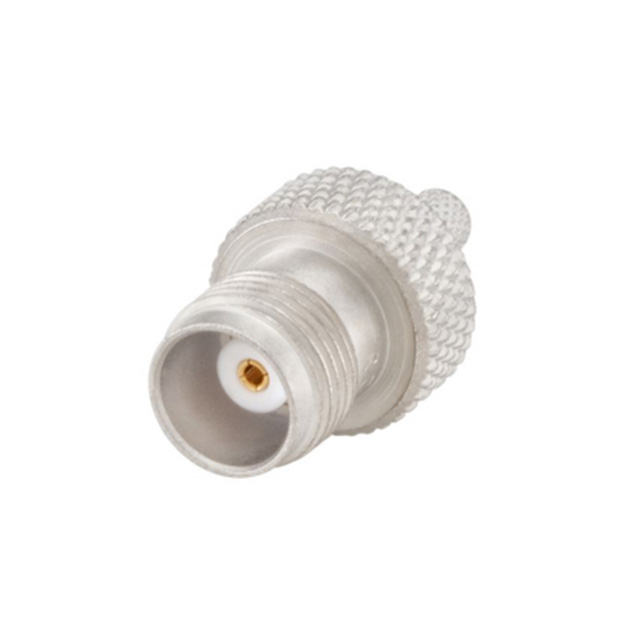

56K107-106N5

Active

Rosenberger

CONN TNC JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN TNC JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	56K107-106N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	141
Cable Group	RG-58C
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Frequency - Max [Max]	Center Contact Plating	Voltage Rating	Insertion Loss	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Body Finish	Connector Style	Center Contact Material	Contact Termination	Cable Group	Cable Group	Body Material	Mounting Type	Number of Ports	Impedance	Connector Type	Housing Color	Includes	Mating Cycles
Rosenberger 56K107-106N5	10 GHz	Gold	500 V	0.05 dB	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Crimp	White Bronze	TNC	Beryllium Copper	Crimp	141	RG-58C	Brass	Free Hanging (In-Line)	1	50 Ohms	Female Socket Jack	Silver	1 Connector 1 Contact 1 Ferrule	500
Rosenberger 56K107-802N5	10 GHz	Gold	500 V		Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Crimp	White Bronze	TNC	Beryllium Copper	Crimp		188A 316 RG-174A	Brass	Free Hanging (In-Line)	1	50 Ohms	Female Socket Jack	Silver	1 Connector 1 Contact 1 Ferrule	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
