M3AWK-6018J

Active

IDC CABLE - MSC60K/MC60G/MPL60K

Deep-Dive with AI

Search across all available documentation for this part.

Documents4600 Series Drawing Ribbon Cable Assembly Length Guide +1

M3AWK-6018J

Active

IDC CABLE - MSC60K/MC60G/MPL60K

Deep-Dive with AI

Documents4600 Series Drawing Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.68
		10	$ 30.68
		25	$ 27.82
		50	$ 25.89
		100	$ 24.15
		250	$ 22.09

Description

General part information

M3AWK Series

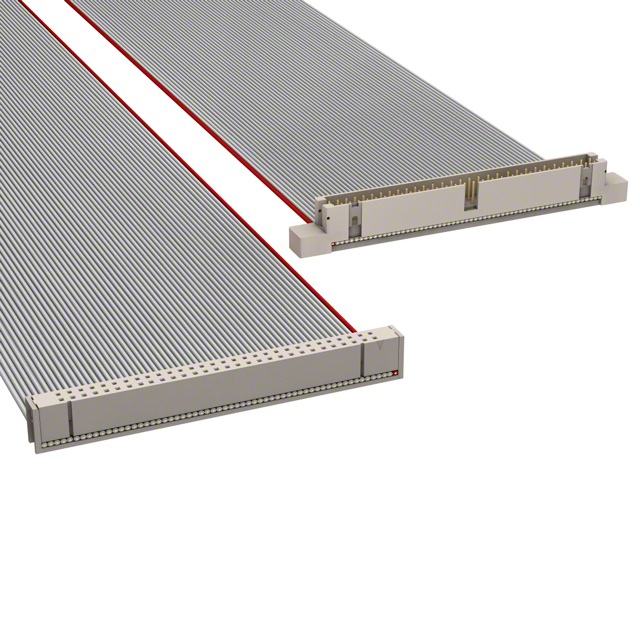

60 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)

Documents

Technical documentation and resources

4600 Series Drawing

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3AWK-6018J	M3AWK Series

Cable Termination	IDC	IDC
Color	-	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Flange, Polarizing Key	Flange, Polarizing Key
Length	-	1.52 - 508 m
Length	-	1.67 - 5 '
Length	-	6 "
Length	-	0.5 '
Length [x]	457.2 mm	1.02 - 914.4 m
Length [x]	1.5 ft	1.5 - 3.34 ft
Number of Positions	60	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3AWK Series

IDC CABLE - MSC16K/MC16F/MPL16K

Part	Contact Finish	Color	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Features	Cable Termination	Shielding	Pitch - Connector	Pitch - Connector	Number of Positions	Number of Positions	Length	Length	Length	Length
3M M3AWK-1640K	Gold	Multiple, Twisted Pair (Flat)	1.02 m	3.34 ft	0.05 "	1.27 mm	0.76 Ám	30 Áin	2	Socket to Plug	Flange, Polarizing Key	IDC	Unshielded	0.1 in	2.54 mm	16
3M M3AWK-2436J	Gold		914.4 mm	3 ft	0.05 "	1.27 mm	0.76 Ám	30 Áin	2	Socket to Plug	Flange, Polarizing Key	IDC	Unshielded	0.1 in	2.54 mm		24
3M M3AWK-2660K	Gold	Multiple, Twisted Pair (Flat)			0.05 "	1.27 mm	0.76 Ám	30 Áin	2	Socket to Plug	Flange, Polarizing Key	IDC	Unshielded	0.1 in	2.54 mm		26	1.52 m	5 '
3M M3AWK-2606R	Gold	Multiple, Ribbon			0.05 "	1.27 mm	0.76 Ám	30 Áin	2	Socket to Plug	Flange, Polarizing Key	IDC	Unshielded	0.1 in	2.54 mm		26	152.4 mm		6 "	0.5 '
3M M3AWK-3420K	Gold	Multiple, Twisted Pair (Flat)			0.05 "	1.27 mm	0.76 Ám	30 Áin	2	Socket to Plug	Flange, Polarizing Key	IDC	Unshielded	0.1 in	2.54 mm		34	508 mm	1.67 ft
3M M3AWK-2418J	Gold		457.2 mm	1.5 ft	0.05 "	1.27 mm	0.76 Ám	30 Áin	2	Socket to Plug	Flange, Polarizing Key	IDC	Unshielded	0.1 in	2.54 mm		24
3M M3AWK-4036R	Gold	Multiple, Ribbon	914.4 mm	3 ft	0.05 "	1.27 mm	0.76 Ám	30 Áin	2	Socket to Plug	Flange, Polarizing Key	IDC	Unshielded	0.1 in	2.54 mm		40
3M M3AWK-2606J	Gold				0.05 "	1.27 mm	0.76 Ám	30 Áin	2	Socket to Plug	Flange, Polarizing Key	IDC	Unshielded	0.1 in	2.54 mm		26	152.4 mm		6 "	0.5 '
3M M3AWK-3018J	Gold		457.2 mm	1.5 ft	0.05 "	1.27 mm	0.76 Ám	30 Áin	2	Socket to Plug	Flange, Polarizing Key	IDC	Unshielded	0.1 in	2.54 mm		30
3M M3AWK-6018J	Gold		457.2 mm	1.5 ft	0.05 "	1.27 mm	0.76 Ám	30 Áin	2	Socket to Plug	Flange, Polarizing Key	IDC	Unshielded	0.1 in	2.54 mm		60
