TR70MA180-01E03 VI

Active

Cincon Electronics Co. LTD

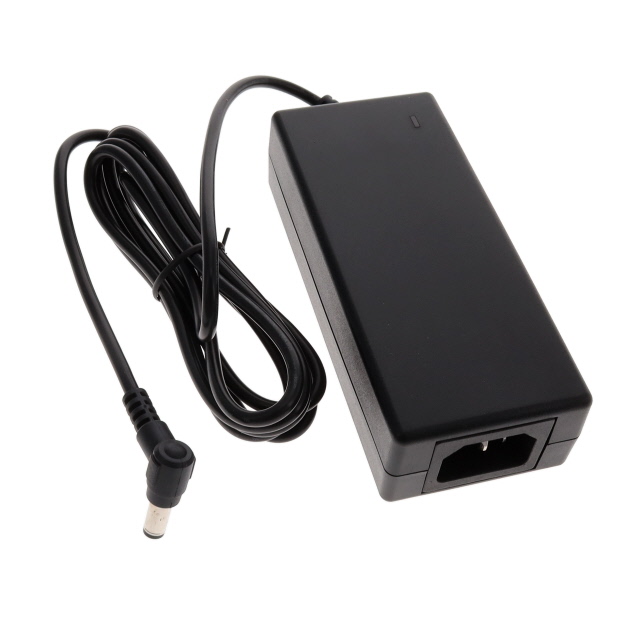

AC/DC DESKTOP ADAPTER 18V 70W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TR70MA180-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC DESKTOP ADAPTER 18V 70W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR70MA180-01E03 VI

Applications	Medical
Approval Agency	cURus, FCC, NEMKO, CE
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	3.9 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug R/A
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	12 mm
Polarization	Positive Center
Power (Watts)	70 W
Region Utilized	International
Size / Dimension [x]	4.72 in
Size / Dimension [x]	120 mm
Size / Dimension [y]	2.05 in
Size / Dimension [y]	52 mm
Size / Dimension [z]	31 mm
Size / Dimension [z]	1.22 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output	18 V

TR70MA Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Input Type	Efficiency	Input Connector	Polarization	Applications	Power (Watts)	Voltage - Output	No Load Power Consumption [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Form	Approval Agency	Current - Output (Max) [Max]
Cincon Electronics Co. LTD TR70MA240-01E03 VI	2.05 in	4.72 in	31 mm	52 mm	1.22 in	120 mm	70.9 in	1.8 m	-20 C	70 °C	264 VAC	80 VAC	International	Cord	CoC Tier 2 Level VI	IEC 320-C14	Positive Center	Medical	72 W	24 V	150 mW	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	Desktop (Class I)	CE cURus FCC NEMKO	3 A
Cincon Electronics Co. LTD TR70MA480-01E03 VI	2.05 in	4.72 in	31 mm	52 mm	1.22 in	120 mm	70.9 in	1.8 m	-20 C	70 °C	264 VAC	80 VAC	International	Cord	CoC Tier 2 Level VI	IEC 320-C14	Positive Center	Medical	72 W	48 V	150 mW	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	Desktop (Class I)	CE cURus FCC NEMKO	1.5 A
Cincon Electronics Co. LTD TR70MA150-01E02 VI	2.05 in	4.72 in	31 mm	52 mm	1.22 in	120 mm	48 in	1.22 m	-20 C	70 °C	264 VAC	80 VAC	International	Cord	CoC Tier 2 Level VI	IEC 320-C14	Positive Center	Medical	70 W	15 VDC	150 mW	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	Desktop (Class I)	CE cURus FCC NEMKO	4.65 A
Cincon Electronics Co. LTD TR70MA180-01E03 VI	2.05 in	4.72 in	31 mm	52 mm	1.22 in	120 mm	70.9 in	1.8 m	-20 C	70 °C	264 VAC	80 VAC	International	Cord	CoC Tier 2 Level VI	IEC 320-C14	Positive Center	Medical	70 W	18 V	150 mW	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	Desktop (Class I)	CE cURus FCC NEMKO	3.9 A
