MAX11960EVKIT#

Active

Analog Devices Inc./Maxim Integrated

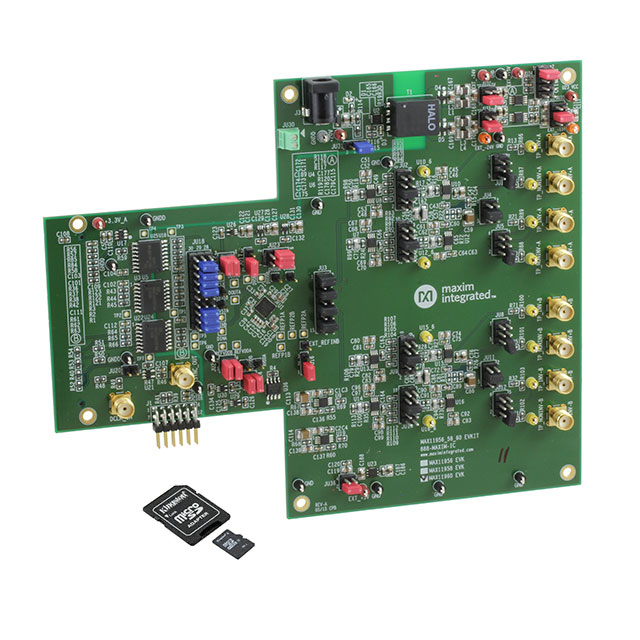

EVAL BOARD FOR MAX11960

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR MAX11960

Technical Specifications

Parameters and characteristics commom to parts in this series

IC ADC 20BIT SAR 32TQFN

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Sampling Rate (Per Second)	Input Type	Architecture	Number of Bits	Supplier Device Package	Configuration	Ratio - S/H:ADC	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Features	Reference Type	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Data Interface	Number of A/D Converters	Number of Inputs	Power (Typ) @ Conditions	Utilized IC / Part	Supplied Contents	Input Range
Analog Devices Inc./Maxim Integrated MAX11960ETJ+T	85 °C	-40 °C	Surface Mount	1 M	Differential	SAR	20	32-TQFN (5x5)	S/H-ADC	1:1	1.9 V	1.7 V	Simultaneous Sampling	External	1.7 V	1.9 V	DSP, SPI	2	2
Analog Devices Inc./Maxim Integrated MAX11960ETJ+	85 °C	-40 °C	Surface Mount	1 M	Differential	SAR	20	32-TQFN (5x5)	S/H-ADC	1:1	1.9 V	1.7 V	Simultaneous Sampling	External	1.7 V	1.9 V	DSP, SPI	2	2
Analog Devices Inc./Maxim Integrated MAX11960EVKIT#				1 M			20										DSP, Serial, SPI	2		18 mW	MAX11960	Board(s)	±VREF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 120.12

General part information

MAX11960 - 20 Bit 1M Samples per Second Analog to Digital Converter (ADC) Evaluation Board
