C4075A.41.10
ActivePrysmian Group

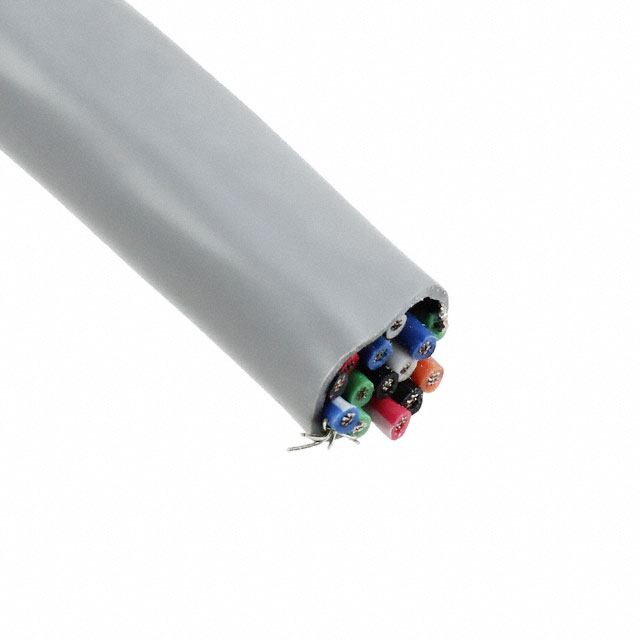

CABLE 20COND 22AWG GRAY 500'
Deep-Dive with AI
Search across all available documentation for this part.
C4075A.41.10
ActivePrysmian Group
CABLE 20COND 22AWG GRAY 500'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C4075A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 8.48 mm |
| Jacket (Insulation) Diameter [diameter] | 0.334 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 15.24 m, 304.8 m |
| Length | 1000 ft |
| Length [x] | 30.5 m, 152.4 m |
| Length [x] | 100 ft, 500 ', 50 ft |
| Number of Conductors | 20 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 177.99 | |
| 1 | $ 356.30 | |||
| 1 | $ 1004.18 | |||
| 5 | $ 941.42 | |||
| 5 | $ 145.63 | |||
| 5 | $ 291.52 | |||
| 10 | $ 878.66 | |||
| 10 | $ 113.27 | |||
| 10 | $ 226.74 | |||
| 1000 | $ 1.60 | |||
| 2000 | $ 1.52 | |||
| 3000 | $ 1.48 | |||
| 5000 | $ 1.42 | |||
| 7000 | $ 1.40 | |||
Description
General part information
C4075 Series
20 Conductor Multi-Conductor Cable Gray 22 AWG 500.0' (152.4m)
Documents
Technical documentation and resources
No documents available
