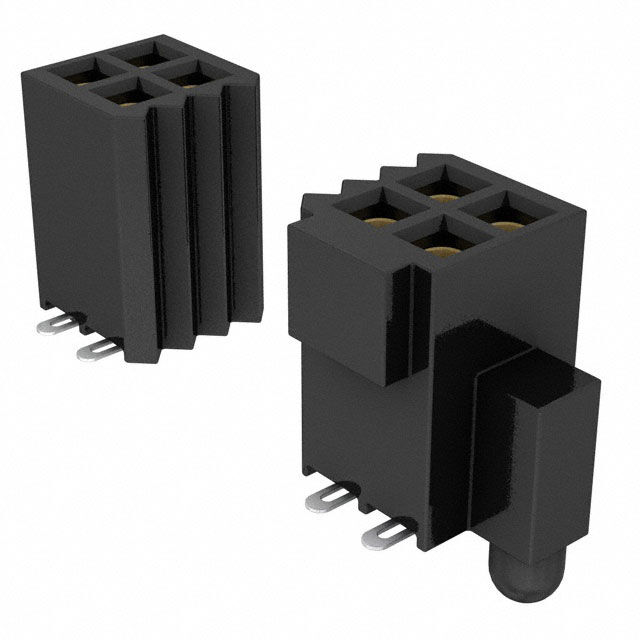

SFC-125-T2-F-D-A

Active

Samtec Inc.

CONN RCPT 50POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFC-105-T2-F-D Datasheet 02 .050" Tiger Eye™ Cost-Effective Reliable Socket Strip +2

SFC-125-T2-F-D-A

Active

Samtec Inc.

CONN RCPT 50POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsSFC-105-T2-F-D Datasheet 02 .050" Tiger Eye™ Cost-Effective Reliable Socket Strip +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFC-125-T2-F-D-A

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	350 VAC

SFC-125 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Type	Insulation Color	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Mounting Type	Number of Positions Loaded	Number of Positions	Fastening Type	Style	Connector Type	Contact Shape	Number of Rows	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Voltage Rating	Current Rating (Amps)	Features	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SFC-125-T2-LM-D-A-K-TR	10 çin	0.25 çm	4.57 mm	0.18 "	Female Socket	Black	Tin	0.05 in	1.27 mm	Gold	Surface Mount	All	50	Push-Pull	Board to Board Cable	Receptacle	Square	2	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Solder	350 VAC	3.1 A	Board Guide Pick and Place
Samtec Inc. SFC-125-T1-L-D	10 çin	0.25 çm	4.57 mm	0.18 "	Female Socket	Black	Tin	0.05 in	1.27 mm	Gold	Through Hole	All	50	Push-Pull	Board to Board Cable	Receptacle	Square	2	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Solder	350 VAC	3.1 A		0.12 in	3.05 mm
Samtec Inc. SFC-125-T2-L-D-K	10 çin	0.25 çm	4.57 mm	0.18 "	Female Socket	Black	Tin	0.05 in	1.27 mm	Gold	Surface Mount	All	50	Push-Pull	Board to Board Cable	Receptacle	Square	2	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Solder	350 VAC	3.1 A	Pick and Place
Samtec Inc. SFC-125-T2-L-D-TR	10 çin	0.25 çm	4.57 mm	0.18 "	Female Socket	Black	Tin	0.05 in	1.27 mm	Gold	Surface Mount	All	50	Push-Pull	Board to Board Cable	Receptacle	Square	2	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Solder	350 VAC	3.1 A
Samtec Inc. SFC-125-T1-L-D-A	10 çin	0.25 çm	4.57 mm	0.18 "	Female Socket	Black	Tin	0.05 in	1.27 mm	Gold	Through Hole	All	50	Push-Pull	Board to Board Cable	Receptacle	Square	2	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Solder	350 VAC	3.1 A	Board Guide	0.12 in	3.05 mm
Samtec Inc. SFC-125-T2-L-D-K-TR	10 çin	0.25 çm	4.57 mm	0.18 "	Female Socket	Black	Tin	0.05 in	1.27 mm	Gold	Surface Mount	All	50	Push-Pull	Board to Board Cable	Receptacle	Square	2	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Solder	350 VAC	3.1 A	Pick and Place
Samtec Inc. SFC-125-T2-F-D-K-TR	3 µin	0.076 µm	4.57 mm	0.18 "	Female Socket	Black	Tin	0.05 in	1.27 mm	Gold	Surface Mount	All	50	Push-Pull	Board to Board Cable	Receptacle	Square	2	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Solder	350 VAC	3.1 A	Pick and Place
Samtec Inc. SFC-125-T2-F-D-K	3 µin	0.076 µm	4.57 mm	0.18 "	Female Socket	Black	Tin	0.05 in	1.27 mm	Gold	Surface Mount	All	50	Push-Pull	Board to Board Cable	Receptacle	Square	2	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Solder	350 VAC	3.1 A	Pick and Place
Samtec Inc. SFC-125-T2-F-D-A	3 µin	0.076 µm	4.57 mm	0.18 "	Female Socket	Black	Tin	0.05 in	1.27 mm	Gold	Surface Mount	All	50	Push-Pull	Board to Board Cable	Receptacle	Square	2	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Solder	350 VAC	3.1 A	Board Guide
Samtec Inc. SFC-125-T2-F-D-A-K	3 µin	0.076 µm	4.57 mm	0.18 "	Female Socket	Black	Tin	0.05 in	1.27 mm	Gold	Surface Mount	All	50	Push-Pull	Board to Board Cable	Receptacle	Square	2	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Solder	350 VAC	3.1 A	Board Guide Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.28
		25	$ 5.67
		50	$ 5.27
		100	$ 5.02
		500	$ 4.69
		1000	$ 3.43
		2500	$ 2.87
