8282-5PG-321

Active

Conxall/Switchcraft

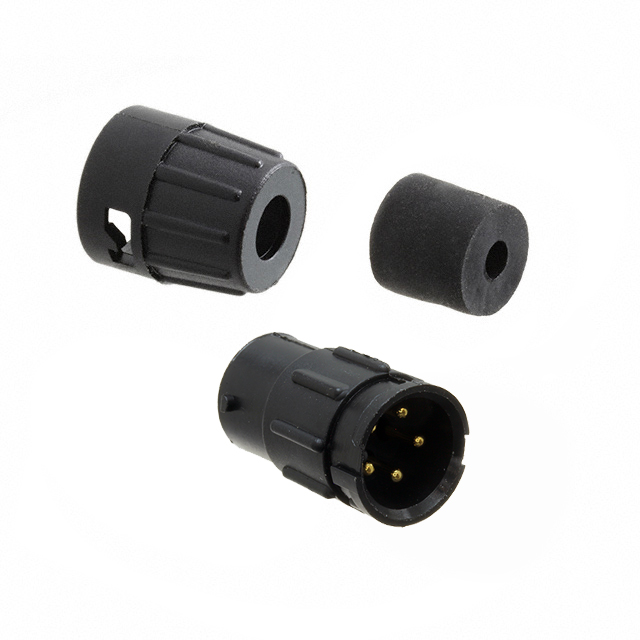

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8282-5PG-321

Active

Conxall/Switchcraft

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8282-5PG-321	8282-5PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	6.35 mm
Cable Opening	-	0.16 in
Cable Opening	-	0.18 in
Cable Opening	-	4.06 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.13 - 0.15 in
Cable Opening	-	3.3 - 3.81 mm
Cable Opening [Max] [diameter]	5.84 mm	5.84 mm
Cable Opening [Max] [diameter]	0.23 in	0.23 - 0.25 in
Cable Opening [Min] [diameter]	5.33 mm	5.33 - 5.59 mm
Cable Opening [Min] [diameter]	0.21 in	0.21 - 0.22 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

8282-5PG Series

CONN RCPT MALE 5P GOLD SLDR CUP

Part	Fastening Type	Orientation	Primary Material	Shielding	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Current Rating (Amps)	Color	Applications	Contact Finish - Mating	Voltage Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Contact Material	Connector Type	Backshell Material, Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 8282-5PG-321	Bayonet Lock	Keyed	Plastic	Unshielded	Backshell	Free Hanging (In-Line)	-40 °C	115 °C	Weathertight	Varies by Wire Gauge	Black	Automotive, Communication Systems, Instrumentation	Gold	600 V	5.33 mm	5.84 mm	0.21 in	0.23 in	Brass	Male Pins, Receptacle	Nylon, Polyamide (PA)
Conxall/Switchcraft 8282-5PG-3DC	Bayonet Lock	Keyed	Plastic	Unshielded	Backshell	Free Hanging (In-Line)	-40 °C	115 °C	Weathertight	Varies by Wire Gauge	Black	Automotive, Communication Systems, Instrumentation	Gold	600 V					Brass	Male Pins, Receptacle	Nylon, Polyamide (PA)
Conxall/Switchcraft 8282-5PG-522	Bayonet Lock	Keyed	Plastic	Unshielded	Backshell	Free Hanging (In-Line)	-40 °C	115 °C	Weathertight	Varies by Wire Gauge	Black	Automotive, Communication Systems, Instrumentation	Gold	600 V	5.59 mm		0.22 in	0.25 in	Brass	Male Pins, Receptacle	Nylon, Polyamide (PA)	6.35 mm
Conxall/Switchcraft 8282-5PG-516	Bayonet Lock	Keyed	Plastic	Unshielded	Backshell	Free Hanging (In-Line)	-40 °C	115 °C	Weathertight	Varies by Wire Gauge	Black	Automotive, Communication Systems, Instrumentation	Gold	600 V					Brass	Male Pins, Receptacle	Nylon, Polyamide (PA)		0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 8282-5PG-513	Bayonet Lock	Keyed	Plastic	Unshielded	Backshell	Free Hanging (In-Line)	-40 °C	115 °C	Weathertight	Varies by Wire Gauge	Black	Automotive, Communication Systems, Instrumentation	Gold	600 V					Brass	Male Pins, Receptacle	Nylon, Polyamide (PA)						0.13 in, 0.15 in	3.3 mm, 3.81 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.92
		10	$ 7.91
		25	$ 7.60
		50	$ 7.30
		100	$ 7.14

Description

General part information

8282-5PG Series

5 Position Circular Connector Receptacle, Male Pins Solder Cup
