Specification	SNT-100-BK-G.MAL

Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Current Rating (Per Contact)	4.3 A
Gender	Female Sockets
Grid Columns	2
Grid Rows	1
Height	0.24 in
Housing Material	PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	2
Pitch	0.1 in
Type	Open Top

SNT-100 Series

Headers & Wire Housings .100" Shunt

Part	Type	Contact Finish Thickness	Gender	Current Rating (Per Contact)	Contact Finish	Housing Material	Material Flammability Rating	Height	Pitch	Grid Columns	Grid Rows	Number of Positions or Pins (Grid)	Color
Samtec Inc. SNT-100-OR-G	Open Top	10 Ąin	Female Sockets	4.3 A	Gold	PBT Polybutylene Terephthalate	UL94 V-0	0.24 in	0.1 in	2	1	2	Orange
Samtec Inc. SNT-100-RD-G	Open Top	10 Ąin	Female Sockets	4.3 A	Gold	PBT Polybutylene Terephthalate	UL94 V-0	0.24 in	0.1 in	2	1	2	Red
Samtec Inc. SNT-100-OR-H-H	Grip Open Top	30 µin	Female Sockets	4.3 A	Gold	PBT Polybutylene Terephthalate	UL94 V-0	0.55 in	0.1 in	2	1	2	Orange
Samtec Inc. SNT-100-BL-G	Open Top	10 Ąin	Female Sockets	4.3 A	Gold	PBT Polybutylene Terephthalate	UL94 V-0	0.24 in	0.1 in	2	1	2	Blue
Samtec Inc. SNT-100-YW-T	Open Top		Female Sockets	4.3 A	Tin	PBT Polybutylene Terephthalate	UL94 V-0	0.24 in	0.1 in	2	1	2	Yellow
Samtec Inc. SNT-100-BK-H-H	Grip Open Top	30 µin	Female Sockets	4.3 A	Gold	PBT Polybutylene Terephthalate	UL94 V-0	0.55 in	0.1 in	2	1	2	Black
Samtec Inc. SNT-100-YW-T-H	Grip Open Top		Female Sockets	4.3 A	Tin	PBT Polybutylene Terephthalate	UL94 V-0	0.55 in	0.1 in	2	1	2	Yellow
Samtec Inc. SNT-100-BL-G-H	Grip Open Top	10 Ąin	Female Sockets	4.3 A	Gold	PBT Polybutylene Terephthalate	UL94 V-0	0.55 in	0.1 in	2	1	2	Blue
Samtec Inc. SNT-100-BL-H-H	Grip Open Top	30 µin	Female Sockets	4.3 A	Gold	PBT Polybutylene Terephthalate	UL94 V-0	0.55 in	0.1 in	2	1	2	Blue

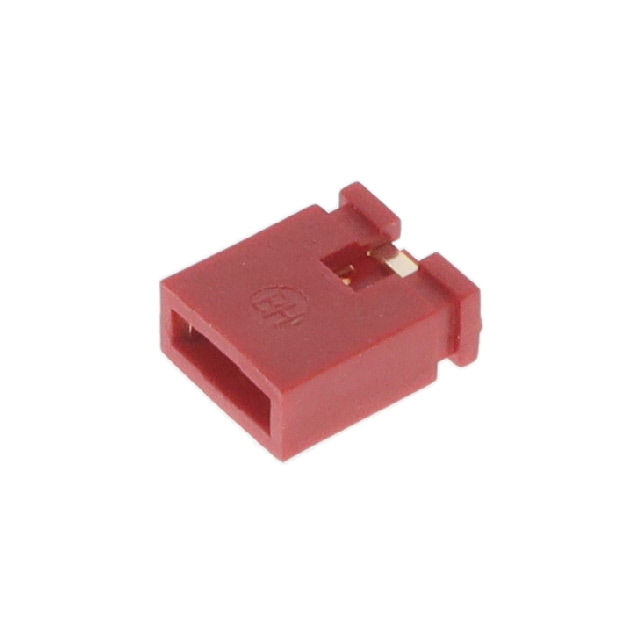

Samtec Inc. SNT-100-RD-H	Open Top	30 µin	Female Sockets	4.3 A	Gold	PBT Polybutylene Terephthalate	UL94 V-0	0.24 in	0.1 in	2	1	2	Red
