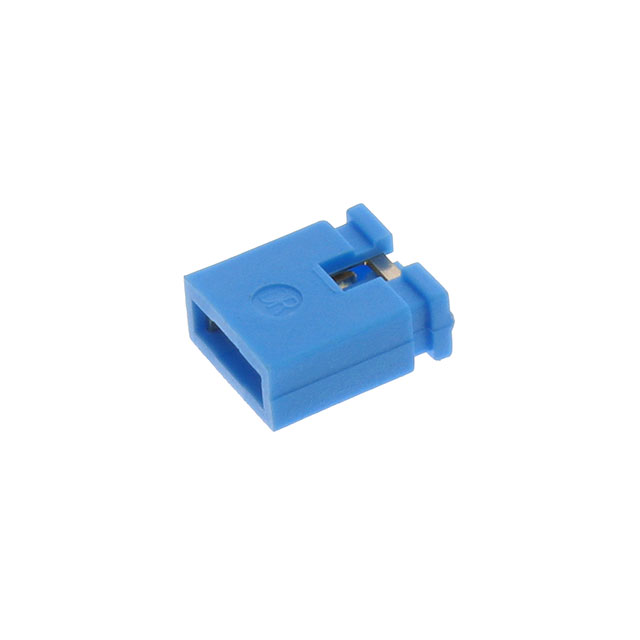

SNT-100-BL-G

Active

Samtec Inc.

CONN SHUNT 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SNT Datasheet

SNT-100-BL-G

Active

Samtec Inc.

CONN SHUNT 2POS

Deep-Dive with AI

DocumentsDatasheet SNT Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SNT-100-BL-G

Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Current Rating (Amps)	4.3 A
Gender	Female Sockets
Height [z]	6.1 mm
Height [z]	0.24 in
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top

SNT-100 Series

Headers & Wire Housings .100" Shunt

Part	Contact Finish Thickness	Contact Finish Thickness	Type	Current Rating (Amps)	Gender	Housing Material	Material Flammability Rating	Pitch [x]	Pitch [x]	Contact Finish	Height [z]	Height [z]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Color
Samtec Inc. SNT-100-OR-G	10 Áin	0.25 Ám	Open Top	4.3 A	Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2.54 mm	0.1 in	Gold	6.1 mm	0.24 in	1 x 2	2
Samtec Inc. SNT-100-RD-G	10 Áin	0.25 Ám	Open Top	4.3 A	Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2.54 mm	0.1 in	Gold	6.1 mm	0.24 in	1 x 2	2	Red
Samtec Inc. SNT-100-OR-H-H	30 Áin	0.76 Ám	Grip Open Top	4.3 A	Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2.54 mm	0.1 in	Gold	13.97 mm	0.55 in	1 x 2	2
Samtec Inc. SNT-100-BL-G	10 Áin	0.25 Ám	Open Top	4.3 A	Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2.54 mm	0.1 in	Gold	6.1 mm	0.24 in	1 x 2	2	Blue
Samtec Inc. SNT-100-YW-T			Open Top	4.3 A	Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2.54 mm	0.1 in	Tin	6.1 mm	0.24 in	1 x 2	2	Yellow
Samtec Inc. SNT-100-BK-H-H	30 Áin	0.76 Ám	Grip Open Top	4.3 A	Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2.54 mm	0.1 in	Gold	13.97 mm	0.55 in	1 x 2	2	Black
Samtec Inc. SNT-100-YW-T-H			Grip Open Top	4.3 A	Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2.54 mm	0.1 in	Tin	13.97 mm	0.55 in	1 x 2	2	Yellow
Samtec Inc. SNT-100-BL-G-H	10 Áin	0.25 Ám	Grip Open Top	4.3 A	Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2.54 mm	0.1 in	Gold	13.97 mm	0.55 in	1 x 2	2	Blue
Samtec Inc. SNT-100-BL-H-H	30 Áin	0.76 Ám	Grip Open Top	4.3 A	Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2.54 mm	0.1 in	Gold	13.97 mm	0.55 in	1 x 2	2	Blue
Samtec Inc. SNT-100-BK-T-H			Grip Open Top	4.3 A	Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2.54 mm	0.1 in	Tin	6.1 mm	0.24 in	1 x 2	2	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.36
		50	$ 0.28
		100	$ 0.22
		500	$ 0.19
		1000	$ 0.15
		2000	$ 0.14
		5000	$ 0.14

Description

General part information

SNT-100 Series

Headers & Wire Housings .100" Shunt

Documents

Technical documentation and resources

Datasheet

SNT Datasheet

Datasheet
