MP0042/2

Active

BULGIN LIMITED

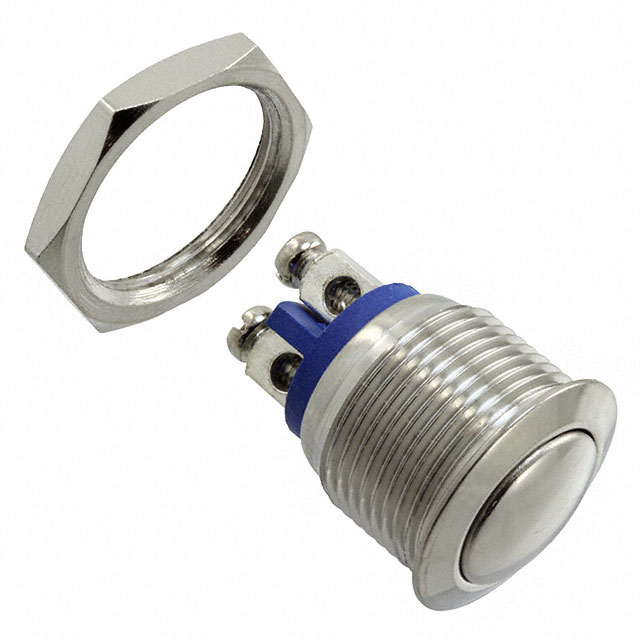

VANDAL RESISTANT SWITCH, SPST-NO, NATURAL, MOMENTARY, SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MP0042/2

Active

BULGIN LIMITED

VANDAL RESISTANT SWITCH, SPST-NO, NATURAL, MOMENTARY, SCREW

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MP0042/2

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	100000 Cycles
Features	Stainless Steel
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - DC	36 VDC

MP0042 Series

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Electrical Life	Circuit	Color - Actuator/Cap	Mechanical Life	Voltage Rating - DC	Actuator Marking	Features	Type	Actuator Type	Mounting Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Switch Function
BULGIN LIMITED MP0042/2	IP65 - Dust Tight Water Resistant	55 °C	-20 C	Screw Terminal	100000 Cycles	SPST-NO	Silver	1000000 Cycles	36 VDC	No Marking	Stainless Steel	Standard	Button Domed Round	Panel Mount Front	16.2 mm	2 A	Off-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.01
		10	$ 18.99
		25	$ 17.90
		50	$ 17.12
		100	$ 16.37
		250	$ 15.43
		500	$ 14.75

Description

General part information

MP0042 Series

The MP0042/2 is a single-pole single-throw (SPST) momentary Vandal Resistant Switch with OFF-(ON) function. The Domed Profile series vandal resistant switch is complemented by a range of 16mm stainless steel switches of robust construction designed for use in applications where space is at a premium. It has SP push to make, screw terminations, stainless steel (polished) body and prominent button.
