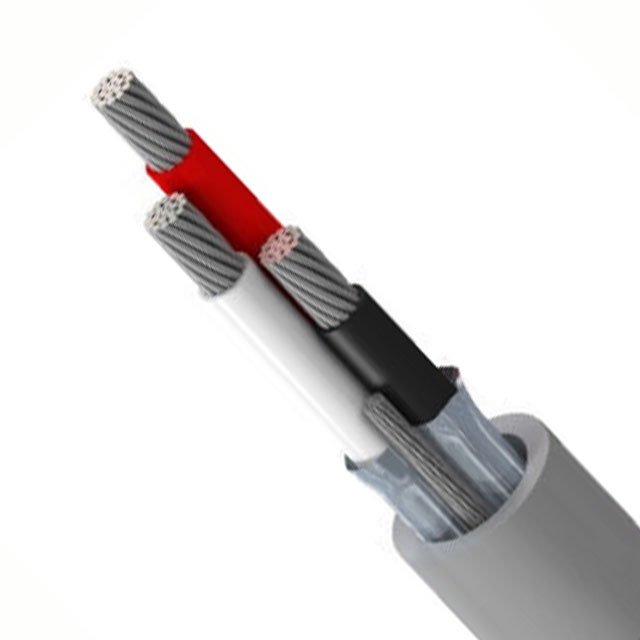

8771MN 0081000

Active

Belden Inc.

CABLE 3COND 22AWG GRAY SHLD 50'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 22AWG GRAY SHLD 50'

Technical Specifications

Parameters and characteristics for this part

Specification	8771MN 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.144 in
Jacket (Insulation) Diameter [diameter]	3.66 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	50 ft, 500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2937
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Conductor Material	Jacket Color	Voltage	Conductor Insulation	Shield Type	Features	Wire Gauge	Jacket (Insulation) Material	Length	Length	Conductor Strand [custom]	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Cable Type	Length [x]	Ratings	Usage
Belden Inc. 8771MN 0081000	-20 C	80 C	3	Copper Tinned	Gray	300 V	Polypropylene (PP)	Foil	Drain Wire	22 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	15.24 m 304.8 m	19 Strands	34 AWG	0.144 in	3.66 mm	100 %	50 ft 500 '	0.406 mm	0.016 in	Aluminum	Multi-Conductor	152.4 m	UL Style 2937
Belden Inc. 8771MN 0041000	-20 C	80 C	3	Copper Tinned	Yellow	300 V	Polypropylene (PP)	Foil	Drain Wire	22 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	19 Strands	34 AWG	0.144 in	3.66 mm	100 %		0.406 mm	0.016 in	Aluminum	Multi-Conductor		UL Style 2937	Audio Control Instrumentation
Belden Inc. 8771MN 008100	-20 C	80 C	3	Copper Tinned	Gray	300 V	Polypropylene (PP)	Foil	Drain Wire	22 AWG	Poly-Vinyl Chloride (PVC)			19 Strands	34 AWG	0.144 in	3.66 mm	100 %	100 ft	0.406 mm	0.016 in	Aluminum	Multi-Conductor	30.5 m	UL Style 2937	Audio Control Instrumentation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Gray 22 AWG Foil 1000.0' (304.8m)
