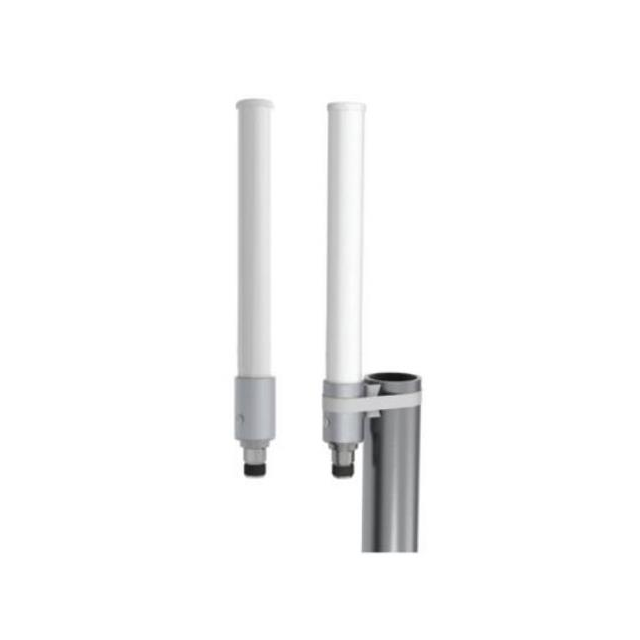

OC69421-FNM
ActiveTE Connectivity Raychem Cable Protection
ANTENNA MOUNT 5DBI GAIN 960MHZ/2700MHZ/4200MHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OC69421-FNM
ActiveTE Connectivity Raychem Cable Protection
ANTENNA MOUNT 5DBI GAIN 960MHZ/2700MHZ/4200MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OC69421-FNM |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | 5G, 4G, CBRS |
| Frequency (Center/Band) | 2.595 GHz, 1.85 GHz, 2.3 GHz, 2.045 GHz, 829 MHz, 3.75 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 1.99 GHz, 2.69 GHz, 4.2 GHz, 2.5 GHz, 2.17 GHz |
| Frequency Range [Min] | 2.1 GHz, 2.5 GHz, 1920 MHz, 3.3 GHz, 1.71 GHz, 698 MHz |
| Gain | 1.5 dBic, 5 dBi, 3.5 dBi |
| Height (Max) [Max] | 9.764 in |
| Height (Max) [Max] | 248 mm |
| Mounting Type | Bracket Mount |
| Number of Bands | 6 |
| Power - Max [Max] | 20 W |
| RF Family/Standard | Cellular |
| Termination | N Type Male |
| VSWR | 2, 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 71.11 | |
| 10 | $ 67.55 | |||
| 25 | $ 65.77 | |||
| 100 | $ 60.88 | |||
Description
General part information
OC69421 Series
RF ANTENNA 4G, 5G, CBRS Whip, Straight N Type Male Bracket Mount
