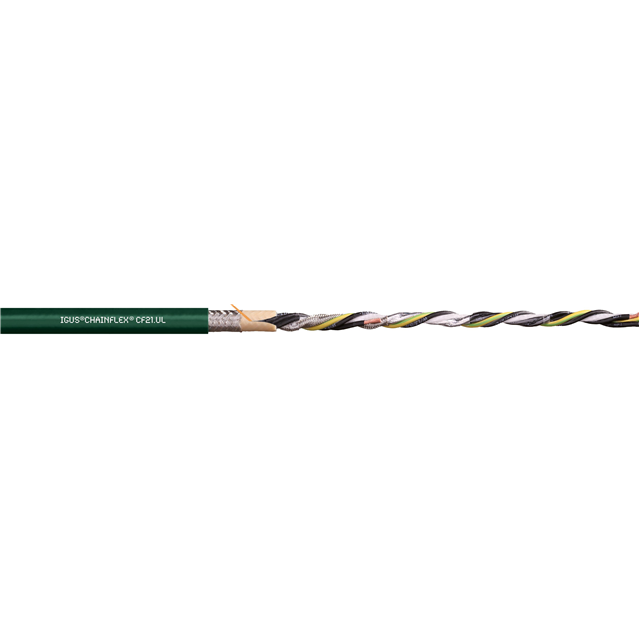

CF21-350-15-02-02-UL

Active

Igus

CABLE 8COND 2AWG/16AWG GRN FEET

Deep-Dive with AI

Search across all available documentation for this part.

CF21-350-15-02-02-UL

Active

Igus

CABLE 8COND 2AWG/16AWG GRN FEET

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF21-350-15-02-02-UL	CF21 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polyethylene (XLPE), Irradiated	Polyethylene (XLPE), Irradiated
Conductor Material	Copper, Bare	Copper, Bare
Features	Rip Cord, Flame Retardant, Oil Resistant	Rip Cord, Flame Retardant, Oil Resistant
Jacket (Insulation) Diameter	-	26.5 mm
Jacket (Insulation) Diameter [diameter]	12.5 mm	1.043 - 25 mm
Jacket (Insulation) Diameter [diameter]	0.492 in	0.492 - 0.906 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Green	Green
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	8	6 - 8
Ratings	UL Style 2570	UL Style 2570
Shield Coverage	90 %	90 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Servo Motor, Industrial	Servo Motor, Industrial
Voltage	1000 V	1000 V
Wire Gauge	2, 16	14 AWG, 16 AWG, 6 AWG, 2, 16, 8 AWG, 10 AWG
Wire Gauge	-	16 - 22 AWG

CF21 Series

CABLE 6COND 14AWG/16AWG GRN FEET

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Shield Material	Jacket (Insulation) Material	Usage	Cable Type	Number of Conductors	Wire Gauge	Shield Coverage	Conductor Insulation	Features	Voltage	Jacket Color	Length	Ratings	Shield Type	Jacket (Insulation) Diameter [diameter]	Wire Gauge
Igus CF21-25-15-02-01-UL	0.571 in	14.5 mm	Copper, Bare	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Industrial, Servo Motor	Multi-Conductor	6	14 AWG, 16 AWG	90 %	Polyethylene (XLPE), Irradiated	Flame Retardant, Oil Resistant, Rip Cord	1000 V	Green	Enter Number of Feet in Order Quantity	UL Style 2570	Braid
Igus CF21-160-15-02-02-UL		1.043 in	Copper, Bare	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Industrial, Servo Motor	Multi-Conductor	8	16 AWG, 6 AWG	90 %	Polyethylene (XLPE), Irradiated	Flame Retardant, Oil Resistant, Rip Cord	1000 V	Green	Enter Number of Feet in Order Quantity	UL Style 2570	Braid	26.5 mm
Igus CF21-350-15-02-02-UL	0.492 in	12.5 mm	Copper, Bare	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Industrial, Servo Motor	Multi-Conductor	8	16, 2	90 %	Polyethylene (XLPE), Irradiated	Flame Retardant, Oil Resistant, Rip Cord	1000 V	Green	Enter Number of Feet in Order Quantity	UL Style 2570	Braid
Igus CF21-10-07-02-02-UL	0.531 in	13.49 mm	Copper, Bare	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Industrial, Servo Motor	Multi-Conductor	8		90 %	Polyethylene (XLPE), Irradiated	Flame Retardant, Oil Resistant, Rip Cord	1000 V	Green	Enter Number of Feet in Order Quantity	UL Style 2570	Braid		17 AWG, 18 AWG
Igus CF21-100-15-02-02-UL	0.906 in	25 mm	Copper, Bare	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Industrial, Servo Motor	Multi-Conductor	8	16 AWG, 8 AWG	90 %	Polyethylene (XLPE), Irradiated	Flame Retardant, Oil Resistant, Rip Cord	1000 V	Green	Enter Number of Feet in Order Quantity	UL Style 2570	Braid
Igus CF21-60-15-02-02-UL	0.827 in	21.01 mm	Copper, Bare	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Industrial, Servo Motor	Multi-Conductor	8	10 AWG, 16 AWG	90 %	Polyethylene (XLPE), Irradiated	Flame Retardant, Oil Resistant, Rip Cord	1000 V	Green	Enter Number of Feet in Order Quantity	UL Style 2570	Braid
Igus CF21-25-15-02-02-UL	0.669 "	16.99 mm	Copper, Bare	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Industrial, Servo Motor	Multi-Conductor	8	14 AWG, 16 AWG	90 %	Polyethylene (XLPE), Irradiated	Flame Retardant, Oil Resistant, Rip Cord	1000 V	Green	Enter Number of Feet in Order Quantity	UL Style 2570	Braid
Igus CF21-07-03-02-02-UL	0.492 in	12.5 mm	Copper, Bare	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Industrial, Servo Motor	Multi-Conductor	8		90 %	Polyethylene (XLPE), Irradiated	Flame Retardant, Oil Resistant, Rip Cord	1000 V	Green	Enter Number of Feet in Order Quantity	UL Style 2570	Braid		18 AWG, 22 AWG
Igus CF21-60-15-02-01-UL	0.709 "	18.01 mm	Copper, Bare	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Industrial, Servo Motor	Multi-Conductor	6	10 AWG, 16 AWG	90 %	Polyethylene (XLPE), Irradiated	Flame Retardant, Oil Resistant, Rip Cord	1000 V	Green	Enter Number of Feet in Order Quantity	UL Style 2570	Braid
Igus CF21-15-15-02-01-UL	0.512 in	13.01 mm	Copper, Bare	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Industrial, Servo Motor	Multi-Conductor	6		90 %	Polyethylene (XLPE), Irradiated	Flame Retardant, Oil Resistant, Rip Cord	1000 V	Green	Enter Number of Feet in Order Quantity	UL Style 2570	Braid		16 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.06
		100	$ 49.98
		500	$ 47.99
		1000	$ 41.89

Description

General part information

CF21 Series

8 (2 Twisted Pairs + 4) Conductor Multi-Conductor Cable Green 2 AWG, 16 AWG Braid Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

No documents available
