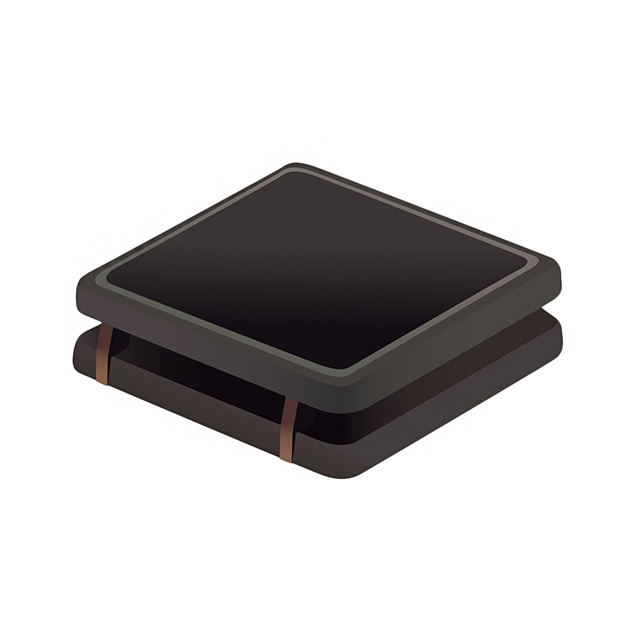

SRN3010TA-150M - SRN3010TA

SRN3010TA-150M

Active
Bourns Inc.

IND,3X3X1MM,15UH20%,0.7A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
SRN3010TA-150M - SRN3010TA

SRN3010TA-150M

Active
Bourns Inc.

IND,3X3X1MM,15UH20%,0.7A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSRN3010TA-150M
Current - Saturation (Isat)540 mA
Current Rating (Amps)700 mA
DC Resistance (DCR)510 mOhm
Frequency - Self Resonant35 MHz
Height - Seated (Max) [Max]0.039 "
Height - Seated (Max) [Max]1 mm
Inductance15 µH
Inductance Frequency - Test1 MHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / Case1212
Package / Case3030 Metric
Q @ Freq22
RatingsAEC-Q200
ShieldingShielded
Size / Dimension [x]0.118 in
Size / Dimension [x]3 mm
Size / Dimension [y]3 mm
Size / Dimension [y]0.118 in
Supplier Device Package3010
Tolerance20 %
TypeWirewound, Drum Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.42
10$ 0.32
25$ 0.29
50$ 0.27
100$ 0.25
250$ 0.23
500$ 0.21
1000$ 0.19
Digi-Reel® 1$ 0.42
10$ 0.32
25$ 0.29
50$ 0.27
100$ 0.25
250$ 0.23
500$ 0.21
1000$ 0.19
Tape & Reel (TR) 2000$ 0.18
4000$ 0.17
6000$ 0.16
10000$ 0.15
14000$ 0.14
20000$ 0.14
50000$ 0.14
NewarkEach 1000$ 0.17
2500$ 0.15

Description

General part information

SRN3010TA Series

15 µH Shielded Drum Core, Wirewound Inductor 700 mA 510mOhm 1212 (3030 Metric)
