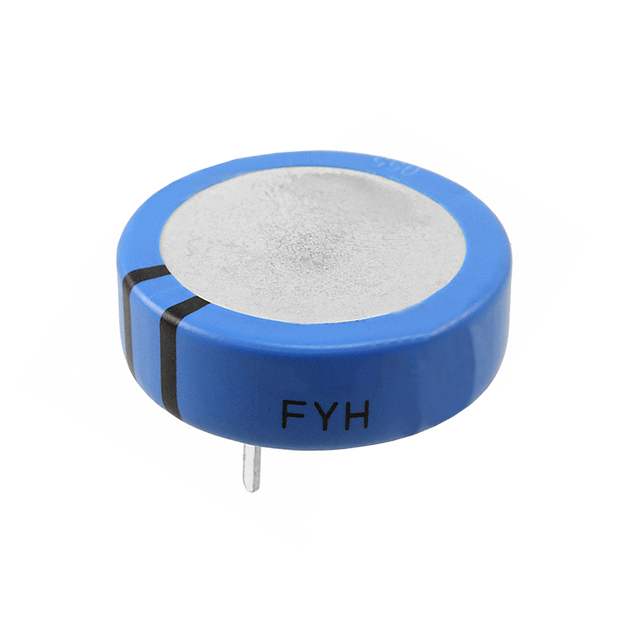

FYH0H224ZF

Active

KEMET

CAP 220MF -20% +80% 5.5V T/H

Search across all available documentation for this part.

Active

KEMET

CAP 220MF -20% +80% 5.5V T/H

Technical Specifications

Parameters and characteristics for this part

Specification	FYH0H224ZF

Capacitance	220 mF
ESR (Equivalent Series Resistance)	60 Ohm
Height - Seated (Max) [Max]	9.5 mm
Height - Seated (Max) [Max]	0.374 in
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Termination	PC Pins
Tolerance [Max]	80 %
Tolerance [Min]	-20 %
Voltage - Rated	5.5 V

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Mounting Type	Termination	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Lead Spacing	Lead Spacing	Tolerance [Max]	Tolerance [Min]	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Height - Seated (Max) [Max]
KEMET FYH0H224ZF	9.5 mm	0.374 in	220 mF	Through Hole	PC Pins	60 Ohm	70 °C	-25 °C	Radial Can	5.08 mm	0.2 in	80 %	-20 %	5.5 V
KEMET FYH0H105ZF			1 F	Through Hole	PC Pins	20 Ohm	70 °C	-25 °C	Radial Can	10.16 mm	0.4 in	80 %	-20 %	5.5 V	11 mm	0.433 in	1.122 in	28.5 mm
KEMET FYH0H474ZF		10 mm	470 mF	Through Hole	PC Pins	35 Ohm	70 °C	-25 °C	Radial Can	7.62 mm	0.3 "	80 %	-20 %	5.5 V			0.846 "		21.5 mm	0.394 in
