1-796866-2

Active

TE Connectivity AMP Connectors

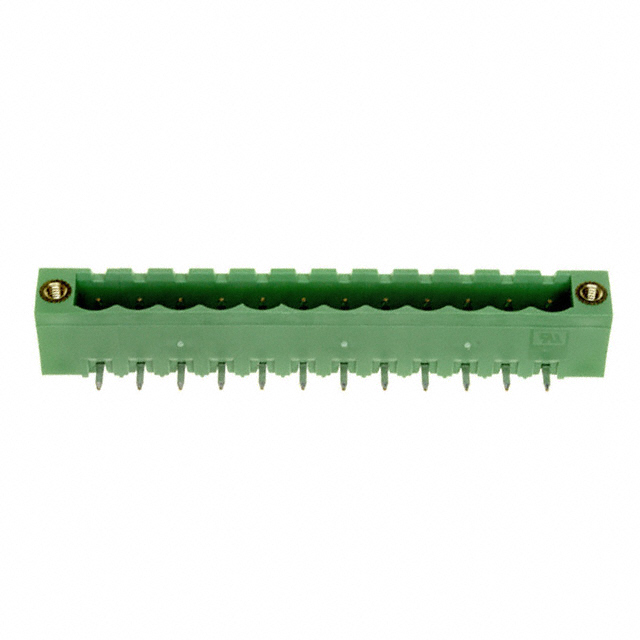

TERM BLOCK HDR 12POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-796866-2

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 12POS 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.41
		10	$ 8.82
		25	$ 7.81
		50	$ 7.21
		100	$ 6.71
		300	$ 6.13
		500	$ 5.93
		1000	$ 5.71

Description

General part information

796866 Series

12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	1-796866-2	796866 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Features	Mating Flange	Mating Flange
Header Orientation	90°, Right Angle	90°, Right Angle
Insulation Height	8.36 mm	8.36 mm
Insulation Height	0.329 in	0.329 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	12	4 - 21
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	12	4 - 21
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

Part

Contact Tail Length

Operating Temperature [Min]

Operating Temperature [Max]

Number of Positions

Contact Mating Finish

Type

Contact Material

Voltage - UL

Material Flammability Rating

Mounting Type

Color

Insulation Height

Positions Per Level

Number of Levels

Features

Termination Style

Pitch [x]

Header Orientation

TE Connectivity AMP Connectors

796866-6

3.5 mm

0.138 in

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

Copper Alloy

300 V

UL94 V-0

Through Hole

Green

8.36 mm

0.329 in

Mating Flange

Solder

0.2 in

5.08 mm

90°, Right Angle

TE Connectivity AMP Connectors

796866-9

3.5 mm

0.138 in

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

Copper Alloy

300 V

UL94 V-0

Through Hole

Green

8.36 mm

0.329 in

Mating Flange

Solder

0.2 in

5.08 mm

90°, Right Angle

TE Connectivity AMP Connectors

1-796866-5

3.5 mm

0.138 in

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

Copper Alloy

300 V

UL94 V-0

Through Hole

Green

8.36 mm

0.329 in

Mating Flange

Solder

0.2 in

5.08 mm

90°, Right Angle

TE Connectivity AMP Connectors

2-796866-1

3.5 mm

0.138 in

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

Copper Alloy

300 V

UL94 V-0

Through Hole

Green

8.36 mm

0.329 in

Mating Flange

Solder

0.2 in

5.08 mm

90°, Right Angle

TE Connectivity AMP Connectors

1-796866-2

3.5 mm

0.138 in

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

Copper Alloy

300 V

UL94 V-0

Through Hole

Green

8.36 mm

0.329 in

Mating Flange

Solder

0.2 in

5.08 mm

90°, Right Angle

TE Connectivity AMP Connectors

1-796866-3

3.5 mm

0.138 in

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

Copper Alloy

300 V

UL94 V-0

Through Hole

Green

8.36 mm

0.329 in

Mating Flange

Solder

0.2 in

5.08 mm

90°, Right Angle

TE Connectivity AMP Connectors

2-796866-0

3.5 mm

0.138 in

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

Copper Alloy

300 V

UL94 V-0

Through Hole

Green

8.36 mm

0.329 in

Mating Flange

Solder

0.2 in

5.08 mm

90°, Right Angle

TE Connectivity AMP Connectors

796866-4

3.5 mm

0.138 in

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

Copper Alloy

300 V

UL94 V-0

Through Hole

Green

8.36 mm

0.329 in

Mating Flange

Solder

0.2 in

5.08 mm

90°, Right Angle

TE Connectivity AMP Connectors

796866-7

3.5 mm

0.138 in

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

Copper Alloy

300 V

UL94 V-0

Through Hole

Green

8.36 mm

0.329 in

Mating Flange

Solder

0.2 in

5.08 mm

90°, Right Angle

Part	Contact Tail Length	Contact Tail Length	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Mating Finish	Type	Contact Material	Voltage - UL	Material Flammability Rating	Mounting Type	Color	Insulation Height	Insulation Height	Positions Per Level	Number of Levels	Features	Termination Style	Pitch [x]	Pitch [x]	Header Orientation
TE Connectivity AMP Connectors 796866-6	3.5 mm	0.138 in	-40 °C	110 °C	6	Tin	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	300 V	UL94 V-0	Through Hole	Green	8.36 mm	0.329 in	6	1	Mating Flange	Solder	0.2 in	5.08 mm	90°, Right Angle
TE Connectivity AMP Connectors 796866-9	3.5 mm	0.138 in	-40 °C	110 °C	9	Tin	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	300 V	UL94 V-0	Through Hole	Green	8.36 mm	0.329 in	9	1	Mating Flange	Solder	0.2 in	5.08 mm	90°, Right Angle
TE Connectivity AMP Connectors 1-796866-5	3.5 mm	0.138 in	-40 °C	110 °C	15	Tin	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	300 V	UL94 V-0	Through Hole	Green	8.36 mm	0.329 in	15	1	Mating Flange	Solder	0.2 in	5.08 mm	90°, Right Angle
TE Connectivity AMP Connectors 2-796866-1	3.5 mm	0.138 in	-40 °C	110 °C	21	Tin	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	300 V	UL94 V-0	Through Hole	Green	8.36 mm	0.329 in	21	1	Mating Flange	Solder	0.2 in	5.08 mm	90°, Right Angle
TE Connectivity AMP Connectors 1-796866-2	3.5 mm	0.138 in	-40 °C	110 °C	12	Tin	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	300 V	UL94 V-0	Through Hole	Green	8.36 mm	0.329 in	12	1	Mating Flange	Solder	0.2 in	5.08 mm	90°, Right Angle
TE Connectivity AMP Connectors 1-796866-3	3.5 mm	0.138 in	-40 °C	110 °C	13	Tin	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	300 V	UL94 V-0	Through Hole	Green	8.36 mm	0.329 in	13	1	Mating Flange	Solder	0.2 in	5.08 mm	90°, Right Angle
TE Connectivity AMP Connectors 2-796866-0	3.5 mm	0.138 in	-40 °C	110 °C	20	Tin	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	300 V	UL94 V-0	Through Hole	Green	8.36 mm	0.329 in	20	1	Mating Flange	Solder	0.2 in	5.08 mm	90°, Right Angle
TE Connectivity AMP Connectors 796866-4	3.5 mm	0.138 in	-40 °C	110 °C	4	Tin	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	300 V	UL94 V-0	Through Hole	Green	8.36 mm	0.329 in	4	1	Mating Flange	Solder	0.2 in	5.08 mm	90°, Right Angle
TE Connectivity AMP Connectors 796866-7	3.5 mm	0.138 in	-40 °C	110 °C	7	Tin	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	300 V	UL94 V-0	Through Hole	Green	8.36 mm	0.329 in	7	1	Mating Flange	Solder	0.2 in	5.08 mm	90°, Right Angle
