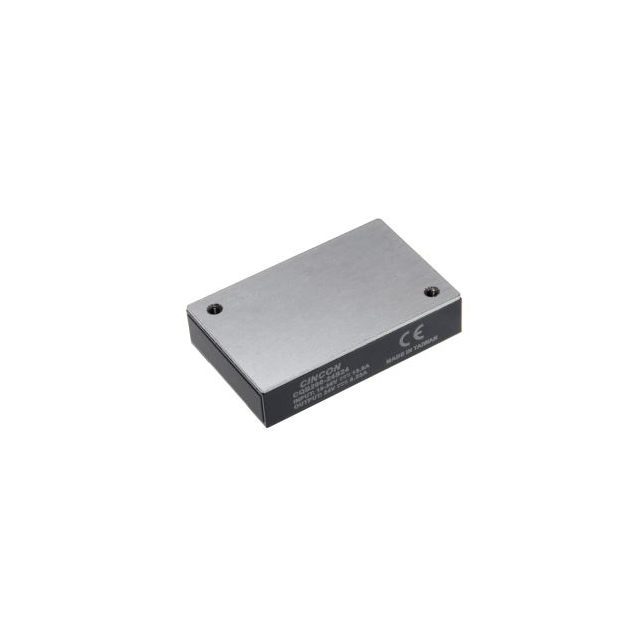

CQB200-24S28
ActiveCincon Electronics Co. LTD
BRICK DC-DC CQB200-24S28
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CQB200-24S28 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 7.14 A |
| Efficiency | 92 % |
| Features | Remote On/Off, Adjustable Output, Baseplate, Remote Sense |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 200 W |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Standard Number | 62368-1 |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 129.00 | |
| 5 | $ 126.42 | |||
| 10 | $ 122.63 | |||
| 25 | $ 117.72 | |||
| 50 | $ 111.84 | |||
Description
General part information
CQB200 Series
Isolated Module DC DC Converter 1 Output 28V 7.14A 18V - 36V Input
