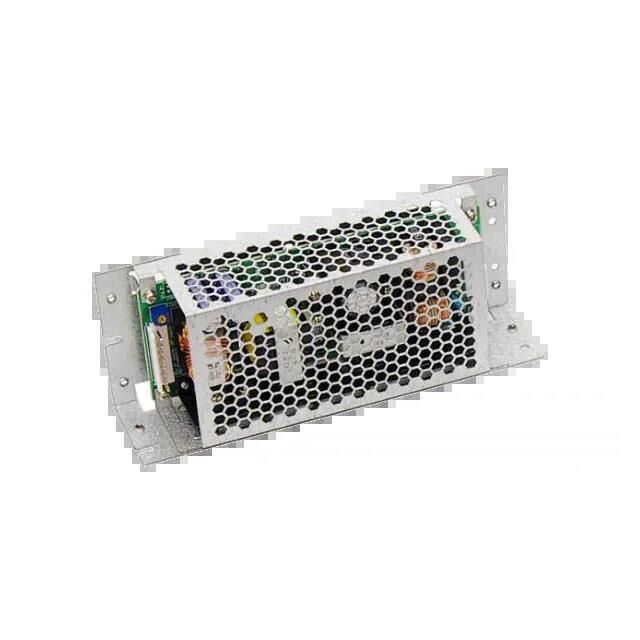

ZWS75BAF-48/A

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 75 W, 48 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZWS75BAF/A Spec Datasheet +4

ZWS75BAF-48/A

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 75 W, 48 V

Deep-Dive with AI

DocumentsZWS75BAF/A Spec Datasheet +4

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.90
Newark	Each	1	$ 90.90
		10	$ 89.51
		25	$ 80.87
		50	$ 78.65

Description

General part information

ZWS75BAF Series

Enclosed AC DC Converters 1 Output 48V 85 ~ 265 VAC Input

Documents

Technical documentation and resources

Specification	ZWS75BAF-48/A	ZWS75BAF Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	1.6 A	1.6 - 15 A
Efficiency	88 %	78 - 88 %
Features	PFC, Adjustable Output, Universal Input	PFC, Adjustable Output, Universal Input, Load Sharing, DC Input Capable
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	75 W	75 W
Size / Dimension [x]	5.9 in	5.9 in
Size / Dimension [x]	150 mm	150 mm
Size / Dimension [y]	50 mm	50 mm
Size / Dimension [y]	1.97 "	1.97 "
Size / Dimension [z]	1.3 "	1.3 "
Size / Dimension [z]	33 mm	33 mm
Type	Enclosed	Enclosed, Open Frame, Conformal Coated
Voltage - Input [Max]	265 VAC	265 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	48 V	3.3 - 48 V

Part

Efficiency

Number of Outputs

Current - Output 1

Mounting Type

Approval Agency

Applications

Power (Watts)

Voltage - Isolation

Size / Dimension [z]

Size / Dimension [x]

Size / Dimension [y]

Size / Dimension [z]

Size / Dimension [y]

Voltage - Input [Min]

Voltage - Input [Max]

Voltage - Output 1

Type

Operating Temperature [Min]

Operating Temperature [Max]

Features

TDK-LAMBDA

ZWS75BAF-12/A

85 %

6.3 A

Chassis Mount

ITE (Commercial)

75 W

3000 V

1.3 "

5.9 in

150 mm

50 mm

33 mm

1.97 "

85 VAC

265 VAC

12 V

Enclosed

-10 °C

70 °C

Adjustable Output, PFC, Universal Input

TDK-LAMBDA

ZWS75BAF-5/L

84 %

15 A

Chassis Mount

ITE (Commercial)

75 W

3000 V

1.3 "

5.9 in

150 mm

50 mm

33 mm

1.97 "

85 VAC

265 VAC

5 V

Open Frame

-10 °C

70 °C

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

TDK-LAMBDA

ZWS75BAF-48/L

88 %

1.6 A

Chassis Mount

ITE (Commercial)

75 W

3000 V

1.3 "

5.9 in

150 mm

50 mm

33 mm

1.97 "

85 VAC

265 VAC

48 V

Open Frame

-10 °C

70 °C

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

TDK-LAMBDA

ZWS75BAF-3/CO2

78 %

15 A

Chassis Mount

ITE (Commercial)

75 W

3000 V

1.3 "

5.9 in

150 mm

50 mm

33 mm

1.97 "

85 VAC

265 VAC

3.3 V

Conformal Coated, Open Frame

-10 °C

70 °C

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

TDK-LAMBDA

ZWS75BAF-15/L

86 %

5 A

Chassis Mount

ITE (Commercial)

75 W

3000 V

1.3 "

5.9 in

150 mm

50 mm

33 mm

1.97 "

85 VAC

265 VAC

15 V

Open Frame

-10 °C

70 °C

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

TDK-LAMBDA

ZWS75BAF-48/A

88 %

1.6 A

Chassis Mount

ITE (Commercial)

75 W

3000 V

1.3 "

5.9 in

150 mm

50 mm

33 mm

1.97 "

85 VAC

265 VAC

48 V

Enclosed

-10 °C

70 °C

Adjustable Output, PFC, Universal Input

TDK-LAMBDA

ZWS75BAF-24/A

87 %

3.2 A

Chassis Mount

ITE (Commercial)

75 W

3000 V

1.3 "

5.9 in

150 mm

50 mm

33 mm

1.97 "

85 VAC

265 VAC

24 V

Enclosed

-10 °C

70 °C

Adjustable Output, PFC, Universal Input

TDK-LAMBDA

ZWS75BAF-48/CO2

88 %

1.6 A

Chassis Mount

ITE (Commercial)

75 W

3000 V

1.3 "

5.9 in

150 mm

50 mm

33 mm

1.97 "

85 VAC

265 VAC

48 V

Conformal Coated, Open Frame

-10 °C

70 °C

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

TDK-LAMBDA

ZWS75BAF-12/CO2

85 %

6.3 A

Chassis Mount

ITE (Commercial)

75 W

3000 V

1.3 "

5.9 in

150 mm

50 mm

33 mm

1.97 "

85 VAC

265 VAC

12 V

Conformal Coated, Open Frame

-10 °C

70 °C

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

TDK-LAMBDA

ZWS75BAF-24/L

87 %

3.2 A

Chassis Mount

ITE (Commercial)

75 W

3000 V

1.3 "

5.9 in

150 mm

50 mm

33 mm

1.97 "

85 VAC

265 VAC

24 V

Open Frame

-10 °C

70 °C

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Part	Efficiency	Number of Outputs	Current - Output 1	Mounting Type	Approval Agency	Applications	Power (Watts)	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Type	Operating Temperature [Min]	Operating Temperature [Max]	Features
TDK-LAMBDA ZWS75BAF-12/A	85 %	1	6.3 A	Chassis Mount	CE	ITE (Commercial)	75 W	3000 V	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	12 V	Enclosed	-10 °C	70 °C	Adjustable Output, PFC, Universal Input
TDK-LAMBDA ZWS75BAF-5/L	84 %	1	15 A	Chassis Mount	CE	ITE (Commercial)	75 W	3000 V	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	5 V	Open Frame	-10 °C	70 °C	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
TDK-LAMBDA ZWS75BAF-48/L	88 %	1	1.6 A	Chassis Mount	CE	ITE (Commercial)	75 W	3000 V	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	48 V	Open Frame	-10 °C	70 °C	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
TDK-LAMBDA ZWS75BAF-3/CO2	78 %	1	15 A	Chassis Mount	CE	ITE (Commercial)	75 W	3000 V	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	3.3 V	Conformal Coated, Open Frame	-10 °C	70 °C	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
TDK-LAMBDA ZWS75BAF-15/L	86 %	1	5 A	Chassis Mount	CE	ITE (Commercial)	75 W	3000 V	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	15 V	Open Frame	-10 °C	70 °C	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
TDK-LAMBDA ZWS75BAF-48/A	88 %	1	1.6 A	Chassis Mount	CE	ITE (Commercial)	75 W	3000 V	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	48 V	Enclosed	-10 °C	70 °C	Adjustable Output, PFC, Universal Input
TDK-LAMBDA ZWS75BAF-24/A	87 %	1	3.2 A	Chassis Mount	CE	ITE (Commercial)	75 W	3000 V	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	24 V	Enclosed	-10 °C	70 °C	Adjustable Output, PFC, Universal Input
TDK-LAMBDA ZWS75BAF-48/CO2	88 %	1	1.6 A	Chassis Mount	CE	ITE (Commercial)	75 W	3000 V	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	48 V	Conformal Coated, Open Frame	-10 °C	70 °C	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
TDK-LAMBDA ZWS75BAF-12/CO2	85 %	1	6.3 A	Chassis Mount	CE	ITE (Commercial)	75 W	3000 V	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	12 V	Conformal Coated, Open Frame	-10 °C	70 °C	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
TDK-LAMBDA ZWS75BAF-24/L	87 %	1	3.2 A	Chassis Mount	CE	ITE (Commercial)	75 W	3000 V	1.3 "	5.9 in	150 mm	50 mm	33 mm	1.97 "	85 VAC	265 VAC	24 V	Open Frame	-10 °C	70 °C	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

ZWS75BAF-48/A

Deep-Dive with AI

ZWS75BAF-48/A

Deep-Dive with AI

Pricing

Description

ZWS75BAF Series

Documents

ZWS75BAF/A Spec

Datasheet

User Manual EN

Safety Data Sheet EN

Technical Data Sheet EN

Declaration of Conformity EN

Technical Specifications

ZWS75BAF Series
