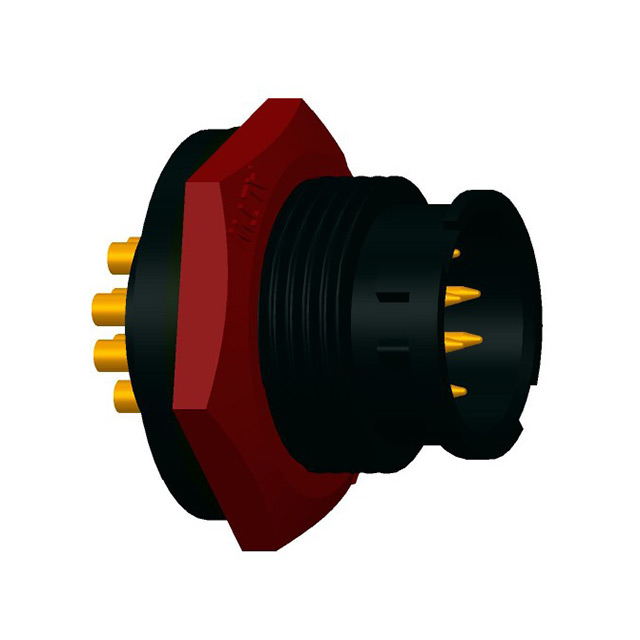

BU-12PMMS-LC7001

Active

Amphenol LTW

CIRCULAR CONNECTOR, STANDARD (B) SERIES, PANEL MOUNT PLUG, 12 CONTACTS

Search across all available documentation for this part.

Active

Amphenol LTW

CIRCULAR CONNECTOR, STANDARD (B) SERIES, PANEL MOUNT PLUG, 12 CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	BU-12PMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

Part	Shell Material	Primary Material	Orientation	Mounting Feature	Insert Material	Ingress Protection	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Color	Contact Finish - Mating	Number of Positions	Connector Type	Shell Size - Insert	Contact Material	Current Rating (Amps)
Amphenol LTW BU-12PMMS-LC7001	Glass Filled Nylon Polyamide (PA)	Plastic	Keyed	Bulkhead - Front Side Nut	Polyamide (PA) Nylon Glass Filled	IP67 - Dust Tight Waterproof	Unshielded	-40 °C	105 ░C	Bayonet Lock	Black	Gold	12	Male Pins Receptacle	B	Copper Alloy	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Male Pins Solder Cup
