WR9QI750CCPNNAR6B

Active

GlobTek, Inc.

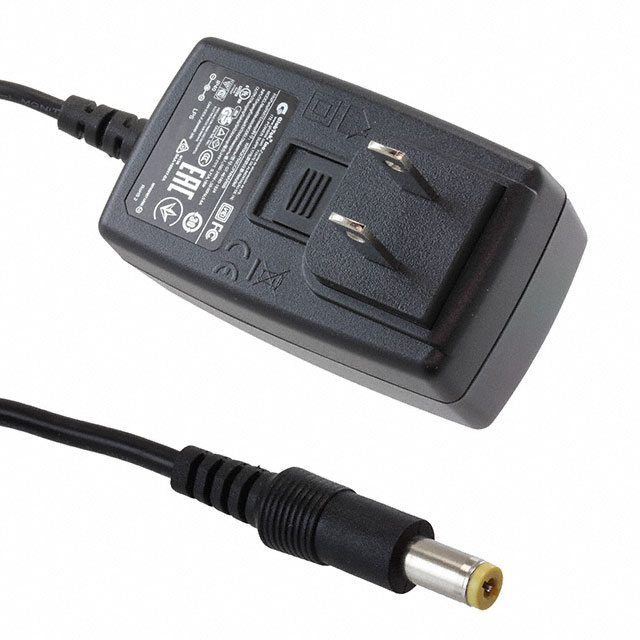

AC/DC WALL MOUNT ADAPTER 24V 18W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QI750CCPNNAR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 24V 18W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.10
		5	$ 11.61
		10	$ 11.41
		25	$ 11.15
		50	$ 10.95
		100	$ 10.76
		250	$ 10.52
		500	$ 10.33

Description

General part information

WR9QI750 Series

24V 18 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WR9QI750CCPNNAR6B	WR9QI750 Series

Applications	ITE (Commercial)	Household Appliances, ITE (Commercial), Medical
Approval Agency	LPS, CCC, CB, RCM, CE, BSMI, EAC, PSE, VCCI, cULus, UKRSepro, FCC	UKRSepro, NOM, CCC, ETL, cETLus, LPS, BIS, EAC, UL, CB, S-Mark, VCCI, CE, PSE, RCM, BSMI, cULus, FCC
Cord Length	1.5 m	1.5 - 1.83 m
Cord Length	59 in	59 - 72 in
Current - Output (Max) [Max]	750 mA	750 mA
Efficiency	Level VI	CoC Tier 2, Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	Multi-Blade	Multi-Blade
Input Type	Multi-Blade (Sold Separately)	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW	75 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	-20 - 0 C
Output Connector	Barrel Plug	Barrel Plug
Output Connector	-	13.8 mm
Output Connector	-	5.5 mm
Output Connector	-	2.1 mm
Output Connector	-	11 mm
Output Connector [diameter]	5.5 mm, 2.1 mm	2.1 - 5.5 mm
Output Connector [z]	11 mm	11 mm
Polarization	Positive Center	Positive Center
Power (Watts)	18 W	18 W
Region Utilized	International	International
Size / Dimension [x]	2.91 "	2.91 "
Size / Dimension [x]	74 mm	74 mm
Size / Dimension [y]	1.71 in	1.71 in
Size / Dimension [y]	43.5 mm	43.5 mm
Size / Dimension [z]	1.34 in	1.34 - 1.45 in
Size / Dimension [z]	34 mm	34 - 36.8 mm
Standard Number	60950-1, 62368-1	60950-1, 62368-1, 60601-1-2, 61558-1, 60335-1, 60601-1-11, 1310
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	24 V	24 V

WR9QI750 Series

AC/DC WALL MOUNT ADAPTER 24V 18W

Part	Power (Watts)	Approval Agency	Polarization	Cord Length	Cord Length	Input Connector	Input Type	Region Utilized	Form	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Applications	No Load Power Consumption [Max]	Efficiency	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Connector	Output Connector [diameter]	Output Connector [z]	Standard Number	Output Connector [x]
GlobTek, Inc. WR9QI750CLP6CIMR6B	18 W	BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI	Positive Center	60.2 in	1.5 m	Multi-Blade	Multi-Blade (Sold Separately)	International	Wall Mount (Class II)	13.8 mm	5.5 mm	2.1 mm	Household Appliances, ITE (Commercial), Medical	75 mW	CoC Tier 2, Level VI	24 V	90 VAC	264 VAC	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	750 mA	-20 C	40 °C
GlobTek, Inc. WR9QI750CCPNNAR6B	18 W	BSMI, CB, CCC, CE, cULus, EAC, FCC, LPS, PSE, RCM, UKRSepro, VCCI	Positive Center	59 in	1.5 m	Multi-Blade	Multi-Blade (Sold Separately)	International	Wall Mount (Class II)				ITE (Commercial)	75 mW	Level VI	24 V	90 VAC	264 VAC	34 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.34 in	750 mA	0 °C	40 °C	Barrel Plug	2.1 mm, 5.5 mm	11 mm	60950-1, 62368-1
GlobTek, Inc. WR9QI750CCPNAIMR6B	18 W	BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI	Positive Center	60.2 in	1.53 m	Multi-Blade	Multi-Blade (Sold Separately)	International	Wall Mount (Class II)				Household Appliances, ITE (Commercial), Medical	75 mW	Level VI	24 V	90 VAC	264 VAC	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	750 mA	-20 C	40 °C	Barrel Plug	2.1 mm, 5.5 mm	11 mm	1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61558-1, 62368-1
GlobTek, Inc. WR9QI750LCPNNAR6B	18 W	BSMI, CB, CCC, CE, cULus, EAC, FCC, LPS, PSE, RCM, UKRSepro, VCCI	Positive Center	72 in	1.83 m	Multi-Blade	Multi-Blade (Sold Separately)	International	Wall Mount (Class II)				ITE (Commercial)	75 mW	Level VI	24 V	90 VAC	264 VAC	34 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.34 in	750 mA	0 °C	40 °C	Barrel Plug	2.5 mm, 5.5 mm		60950-1, 62368-1	11 mm
