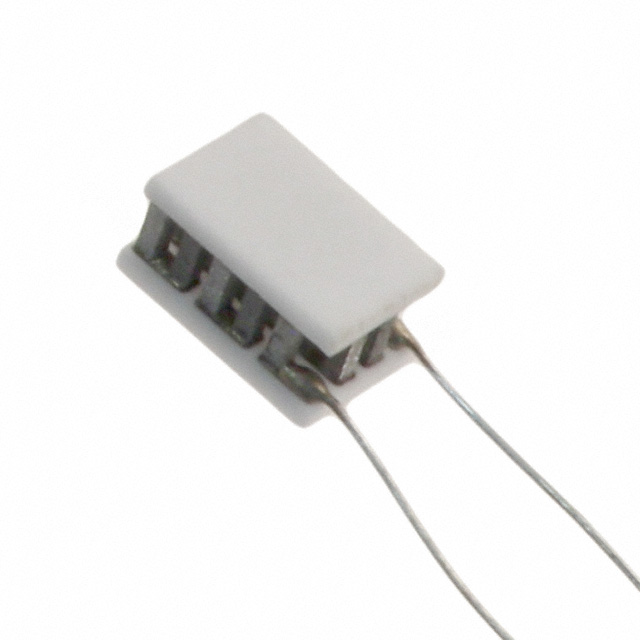

430834-501
Laird Thermal Systems, Inc.
PELTIER OT08,11,F1,0305,11,W2.25
Deep-Dive with AI
Search across all available documentation for this part.
430834-501
Laird Thermal Systems, Inc.
PELTIER OT08,11,F1,0305,11,W2.25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430834-501 |
|---|---|
| Current - Max [Max] | 800 mA |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 2.44 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 0.6 W |
| Resistance | 1.43 Ohms |
| Size / Dimension [x] | 4.88 mm |
| Size / Dimension [y] | 3.25 mm |
| Voltage - Max [Max] | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.42 | |
| 5 | $ 35.08 | |||
| 10 | $ 34.23 | |||
| 25 | $ 32.95 | |||
| 50 | $ 32.10 | |||
| 100 | $ 31.25 | |||
Description
General part information
430834 Series
Peltier Module 0.6W @ 25°C 0.8 A 80°C
