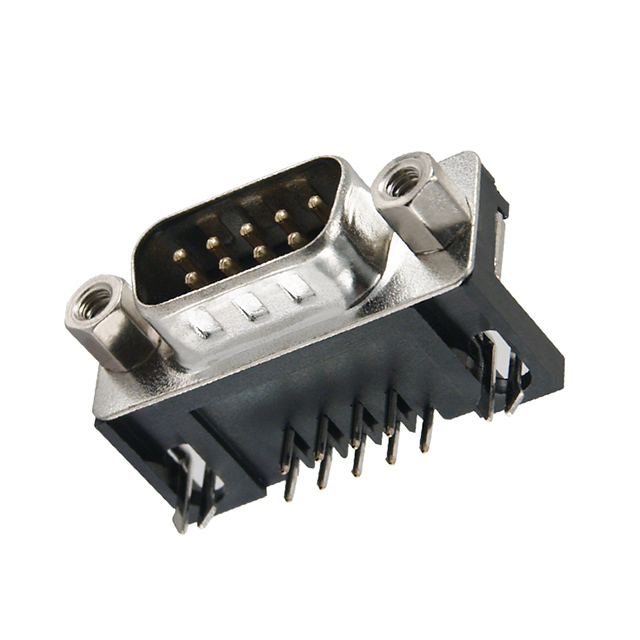

K22X-E9P-NJ30

Active

Kycon, Inc.

CONN D-SUB PLUG 9POS R/A SOLDER

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN D-SUB PLUG 9POS R/A SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	K22X-E9P-NJ30

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	30 VDC

CONN D-SUB PLUG 9POS R/A SOLDER

Part	Contact Type	Mounting Type	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Color	Number of Rows	Contact Material	Dielectric Material	Number of Positions	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Features	Voltage Rating	Current Rating (Amps)	Flange Feature	Contact Form
Kycon, Inc. K22X-E9P-NJ30	Signal	Through Hole, Right Angle	8.08 mm	0.318 "	DE, E	1	Nickel Plated, Steel	Black	2	Brass	Polybutylene Terephthalate (PBT), Glass Filled	9	Male Pins, Plug	105 ░C	-55 °C	D-Sub	UL94 V-0	0.76 Ám	30 Áin	Gold	Solder	Board Lock, Grounding Indents	30 VDC	2 A	Female Screwlock (4-40), Mating Side	Stamped
