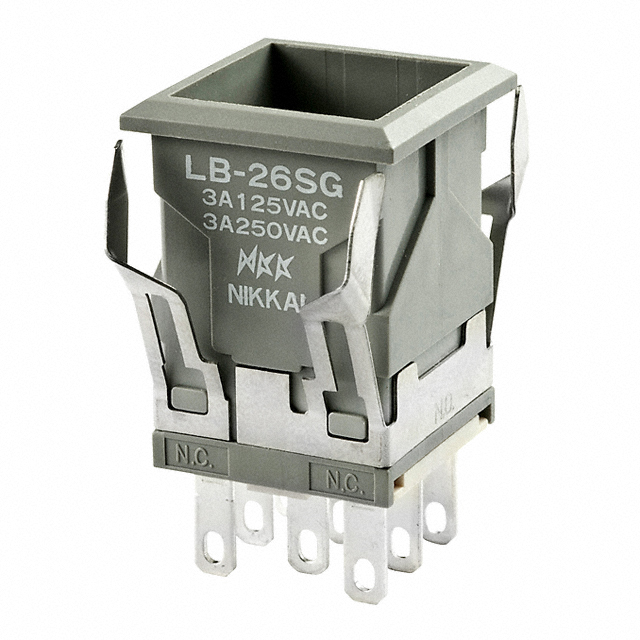

LB26SGW01

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB26SGW01

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB26SGW01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	16.2 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB26SGW Series

Part	Switch Function	Actuator Marking	Type	Termination Style	Termination Style	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Voltage Rating - AC	Mechanical Life	Illumination Type, Color	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Electrical Life	Actuator Type
NKK Switches LB26SGW01-5C-JC	On-On	No Marking	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	30 V	Clear (Red Filter/Diffuser)	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	200000 Cycles	LED Red	3 A	DPDT	1.9 VDC	100000 Cycles	Button Square
NKK Switches LB26SGW01/U	On-On	No Marking	Standard	0.11 in	Quick Connect Solder	2.8 mm	70 °C	-25 °C	30 V		16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	200000 Cycles		3 A	DPDT		100000 Cycles	Plunger for Cap
NKK Switches LB26SGW01-B	On-On	No Marking	Standard	0.11 in	Quick Connect Solder	2.8 mm	70 °C	-25 °C	30 V	White	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	200000 Cycles		3 A	DPDT		100000 Cycles	Button Square
NKK Switches LB26SGW01-01-FJ	On-On	No Marking	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	30 V	Green	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	200000 Cycles	Green Neon	3 A	DPDT		100000 Cycles	Button Square
NKK Switches LB26SGW01-5F-JF	On-On	No Marking	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	30 V	Clear	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	200000 Cycles	Green LED	3 A	DPDT	2.1 VDC	100000 Cycles	Button Square
NKK Switches LB26SGW01-5C05-JC	On-On	No Marking	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	30 V	Clear (Red Filter/Diffuser)	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	200000 Cycles	LED Red	3 A	DPDT	5 VDC	100000 Cycles	Button Square
NKK Switches LB26SGW01-G	On-On	No Marking	Standard	0.11 in	Quick Connect Solder	2.8 mm	70 °C	-25 °C	30 V	Blue	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	200000 Cycles		3 A	DPDT		100000 Cycles	Button Square
NKK Switches LB26SGW01-C	On-On	No Marking	Standard	0.11 in	Quick Connect Solder	2.8 mm	70 °C	-25 °C	30 V	Red	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	200000 Cycles		3 A	DPDT		100000 Cycles	Button Square
NKK Switches LB26SGW01	On-On	No Marking	Standard	0.11 in	Quick Connect Solder	2.8 mm	70 °C	-25 °C	30 V		16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	200000 Cycles		3 A	DPDT		100000 Cycles	Plunger for Cap
NKK Switches LB26SGW01-A	On-On	No Marking	Standard	0.11 in	Quick Connect Solder	2.8 mm	70 °C	-25 °C	30 V	Black	16.2 mm	16.2 mm	Panel Mount Snap-In	125 V	200000 Cycles		3 A	DPDT		100000 Cycles	Button Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.21
		10	$ 12.74
		25	$ 12.18
		50	$ 11.55
		100	$ 11.13
		250	$ 10.43
		500	$ 9.66
		1000	$ 8.66
Newark	Each	1	$ 26.97
		5	$ 25.61
		10	$ 23.74
		25	$ 21.66
		50	$ 18.74
		100	$ 17.49
		250	$ 15.93

Description

General part information

LB26SGW Series

Pushbutton Switch DPDT Standard Panel Mount, Snap-In
