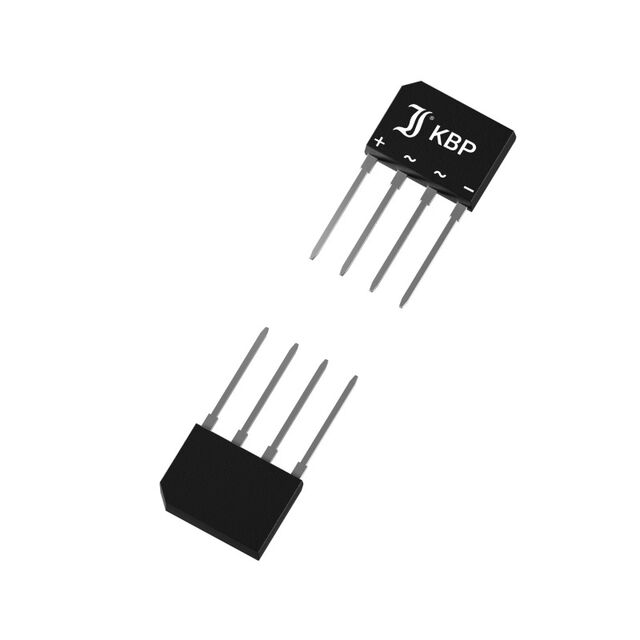

KBP310G
ActiveDiotec Semiconductor
BRIDGE 1-PH KBP 1000V 3A 150DEG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KBP310G
ActiveDiotec Semiconductor
BRIDGE 1-PH KBP 1000V 3A 150DEG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KBP310G |
|---|---|
| Current - Average Rectified (Io) | 1.8 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | 4-SIP, KBP |
| Supplier Device Package | KBP |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | |
| 10 | $ 0.30 | |||
| 25 | $ 0.27 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.10 | |||
| 5000 | $ 0.10 | |||
| Tube | 1 | $ 1.22 | ||
| 1 | $ 0.31 | |||
| 10 | $ 0.77 | |||
| 35 | $ 0.24 | |||
| 100 | $ 0.50 | |||
| 105 | $ 0.18 | |||
| 500 | $ 0.39 | |||
| 525 | $ 0.14 | |||
| 1000 | $ 0.36 | |||
| 1015 | $ 0.12 | |||
| 2000 | $ 0.33 | |||
| 5000 | $ 0.29 | |||
| 10000 | $ 0.27 | |||
Description
General part information
KBP310 Series
Bridge Rectifier Single Phase Standard 1 kV Through Hole KBP
