14182-7PG-300
ActiveConxall/Switchcraft

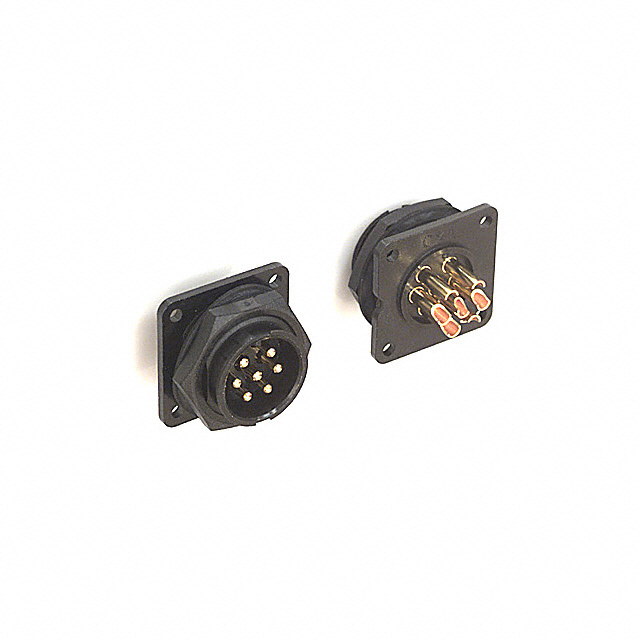

CONN RCPT MALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
14182-7PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 7P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 14182-7PG-300 | 14182-7P Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut, Flange | Bulkhead - Front Side Nut, Flange |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
14182-7P Series
CONN RCPT MALE 7P GOLD SLDR CUP
| Part | Contact Material | Shielding | Voltage Rating | Number of Positions | Connector Type | Contact Finish - Mating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Mounting Feature | Ingress Protection | Primary Material | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 14182-7PG-300 | Brass | Unshielded | 600 V | 7 | Male Pins, Receptacle | Gold | Black | -40 °C | 115 °C | Bayonet Lock | Bulkhead - Front Side Nut, Flange | Weathertight | Plastic | Keyed |
Conxall/Switchcraft 14182-7PG-3ES | Brass | Unshielded | 600 V | 7 | Male Pins, Receptacle | Gold | Black | -40 °C | 115 °C | Bayonet Lock | Bulkhead - Front Side Nut, Flange | Weathertight | Plastic | Keyed |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.81 | |
| 10 | $ 14.28 | |||
| 25 | $ 13.39 | |||
| 50 | $ 12.75 | |||
| 100 | $ 12.14 | |||
| 300 | $ 11.24 | |||
| 500 | $ 10.84 | |||
Description
General part information
14182-7P Series
7 Position Circular Connector Receptacle, Male Pins Solder Cup
