14182-7PG-3ES

Active

Conxall/Switchcraft

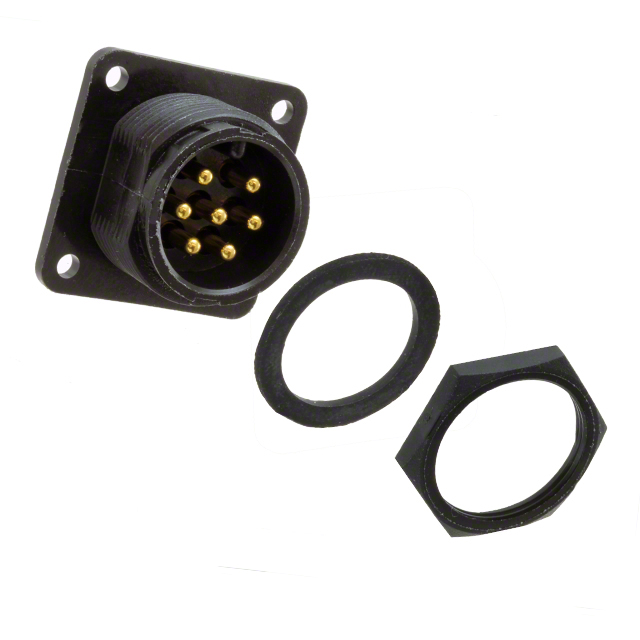

CONN RCPT MALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	14182-7PG-3ES	14182-7P Series

Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	Weathertight	Weathertight
Mounting Feature	Bulkhead - Front Side Nut, Flange	Bulkhead - Front Side Nut, Flange
Number of Positions	7	7
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

CONN RCPT MALE 7P GOLD SLDR CUP

Part	Contact Material	Shielding	Voltage Rating	Number of Positions	Connector Type	Contact Finish - Mating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Feature	Ingress Protection	Primary Material	Orientation
Conxall/Switchcraft 14182-7PG-300	Brass	Unshielded	600 V	7	Male Pins, Receptacle	Gold	Black	-40 °C	115 °C	Bayonet Lock	Bulkhead - Front Side Nut, Flange	Weathertight	Plastic	Keyed
Conxall/Switchcraft 14182-7PG-3ES	Brass	Unshielded	600 V	7	Male Pins, Receptacle	Gold	Black	-40 °C	115 °C	Bayonet Lock	Bulkhead - Front Side Nut, Flange	Weathertight	Plastic	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
