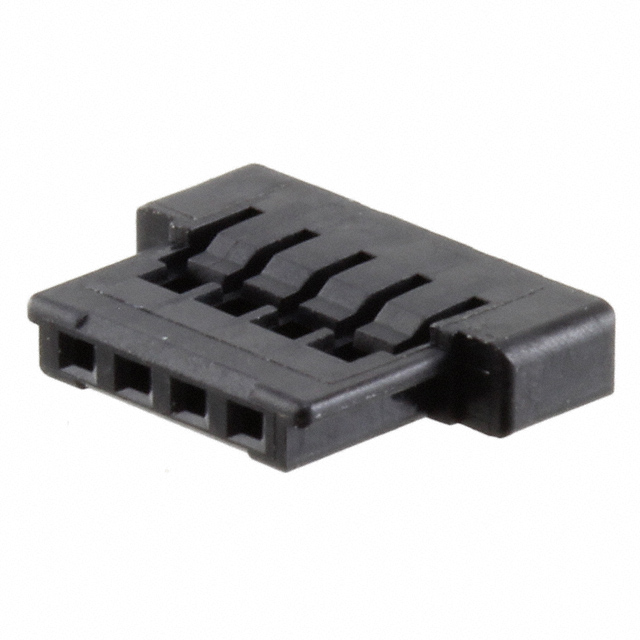

FI-S4S

Active

JAE Electronics

CONN PLUG HSG 4POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG HSG 4POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S4S

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Current Rating (Amps)	Insulation Height	Insulation Height	Number of Rows	Number of Positions	Insulation Color	Style	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage Rating	Material Flammability Rating	Termination	Mounting Type	Fastening Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Material	Shrouding	Contact Type	Contact Finish - Post	Contact Finish - Mating	Connector Type	Color	Contact Termination	Note	Pitch [x]	Pitch [x]	Insulation Material
JAE Electronics FI-S4P-HFE	1 A	1.8 mm	0.071 "	1	4	Beige	Board to Cable/Wire	Square	-40 °C	80 C	Solder Retention	200 V	UL94 V-0	Solder	Surface Mount Right Angle	Friction Lock	All	1.25 mm	0.049 in	Copper Alloy	Shrouded - 4 Wall	Male Pin	Tin or Tin-Alloy	Gold	Receptacle
JAE Electronics FI-S4S				1	4										Free Hanging (In-Line)	Friction Lock						Female Socket			Plug	Black	Crimp	Contacts Not Included	0.049 in	1.25 mm	Polyamide (PA66) Nylon 6/6 Glass Filled
JAE Electronics FI-S4P-HFE-E1500	1 A	1.8 mm	0.071 "	1	4	Beige	Board to Cable/Wire	Square	-40 °C	80 C	Solder Retention	200 V	UL94 V-0	Solder	Surface Mount Right Angle	Friction Lock	All	1.25 mm	0.049 in	Copper Alloy	Shrouded - 4 Wall	Male Pin	Tin or Tin-Alloy	Gold	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Black 0.049" (1.25mm)
