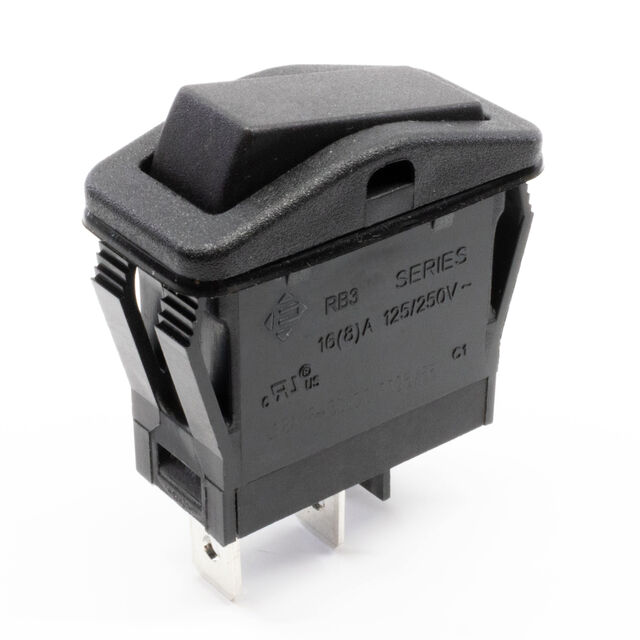

RB341A1100

Active

E-Switch

ROCKER; SPST; POS: 2; OFF-ON; 16A/125VAC; IP67; RB3; RCONT MAX: 20MΩ

Search across all available documentation for this part.

Active

E-Switch

ROCKER; SPST; POS: 2; OFF-ON; 16A/125VAC; IP67; RB3; RCONT MAX: 20MΩ

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Termination Style	Color - Actuator/Cap	Actuator Marking	Approval Agency	Circuit	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Electrical Life	Mounting Type	Current Rating (Amps)	Switch Function	Ingress Protection	Illumination Voltage (Nominal)	Illumination Type, Color
E-Switch RB341A1100	Flat	Quick Connect - 0.250" (6.3mm)	Black	No Marking	cULus ENEC	SPST	125 V	13.8 mm	30.2 mm	10000 Cycles	Panel Mount Snap-In	16 A	On-Off	IP67 - Dust Tight Waterproof
E-Switch RB341A1100-16	Flat - Illuminated	Quick Connect - 0.250" (6.3mm)	Black	No Marking	cULus ENEC	SPST	125 V	13.8 mm	30.2 mm	10000 Cycles	Panel Mount Snap-In	16 A	On-Off	IP67 - Dust Tight Waterproof	125 VAC	LED Red
E-Switch RB342A1100-136	Flat - Illuminated	Quick Connect - 0.250" (6.3mm)	Black	No Marking	cULus ENEC	SPDT	125 V	13.8 mm	30.2 mm	10000 Cycles	Panel Mount Snap-In	16 A	On-On	IP67 - Dust Tight Waterproof	125 VAC	Green/Red LED
E-Switch RB345A1100-136	Flat - Illuminated	Quick Connect - 0.250" (6.3mm)	Black	No Marking	cULus ENEC	SPDT	125 V	13.8 mm	30.2 mm	10000 Cycles	Panel Mount Snap-In	16 A	On-Mom	IP67 - Dust Tight Waterproof	125 VAC	Green/Red LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 2.24

General part information

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
