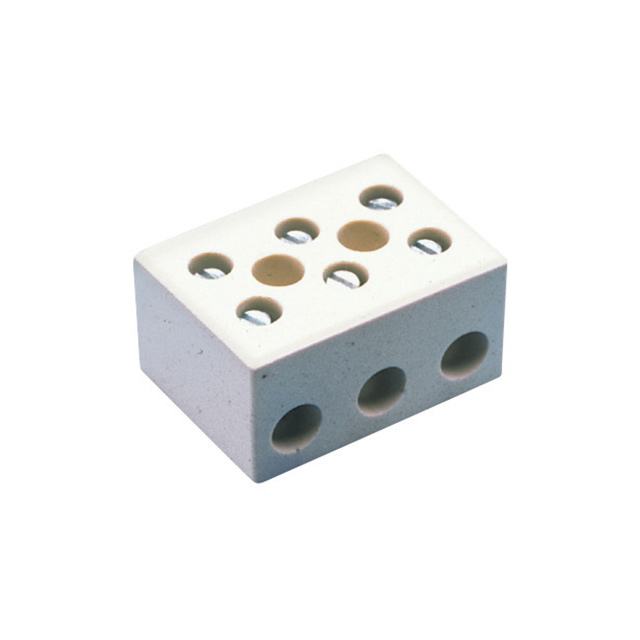

CB16/3H

Active

Altech Corporation

PWR DISTRIB BLK HIGH TEMP

Search across all available documentation for this part.

Active

Altech Corporation

PWR DISTRIB BLK HIGH TEMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CB16/3H	CB16 Series

Current Rating (Amps)	65 A	65 A
Line Side Connection Type	Screw Connection	Screw Connection
Line Side Connections Per Pole	1	1 - 2
Line Side Wire/Stud Size [Max]	18 AWG	18 AWG
Line Side Wire/Stud Size [Min]	6 AWG	6 AWG
Load Side Connection Type	Screw Connection	Screw Connection
Load Side Connections Per Pole	1	1 - 2
Load Side Wire/Stud Size [Max]	18 AWG	18 AWG
Load Side Wire/Stud Size [Min]	6 AWG	6 AWG
Number of Poles	3	2 - 3
Type	Power Distribution Block	Power Distribution Block
Voltage - Rated	300 V	300 V

PWR DISTRIB BLK HIGH TEMP

Part	Number of Poles	Type	Load Side Connection Type	Line Side Wire/Stud Size [Min]	Line Side Wire/Stud Size [Max]	Line Side Connections Per Pole	Load Side Connections Per Pole	Line Side Connection Type	Load Side Wire/Stud Size [Max]	Load Side Wire/Stud Size [Min]	Voltage - Rated	Current Rating (Amps)
Altech Corporation CB16/2H	2	Power Distribution Block	Screw Connection	6 AWG	18 AWG	2	2	Screw Connection	18 AWG	6 AWG	300 V	65 A
Altech Corporation CB16/3H	3	Power Distribution Block	Screw Connection	6 AWG	18 AWG	1	1	Screw Connection	18 AWG	6 AWG	300 V	65 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.78

General part information

3 Pole Power Distribution Block 65 A 300 V
