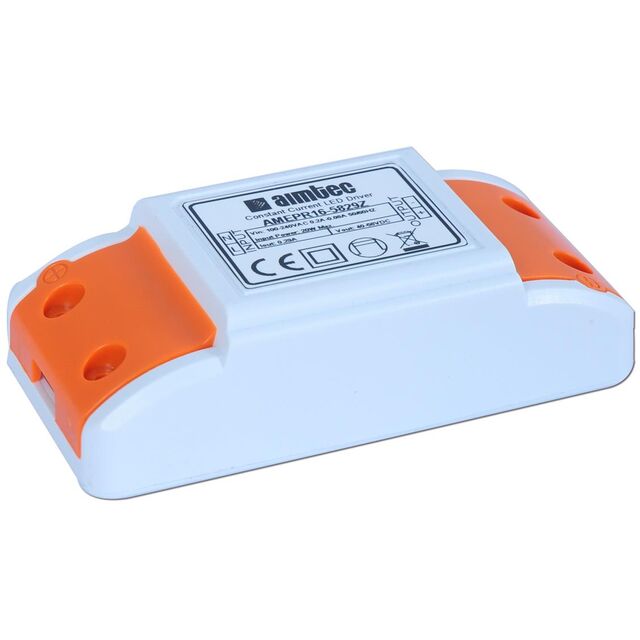

AMEPR16-5829Z

Active

aimtec

LED DRIVER CC AC/DC 40-58V 290MA

Search across all available documentation for this part.

Active

aimtec

LED DRIVER CC AC/DC 40-58V 290MA

Technical Specifications

Parameters and characteristics for this part

LED DRIVER CC AC/DC 40-58V 290MA

Part	Topology	Efficiency	Ratings	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Approval Agency	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Termination Style	Weight	Weight	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)	Voltage - Output [Max]	Voltage - Output [Min]
aimtec AMEPR16-5829Z	AC DC Converter	88 %	IP20	1	44.7 mm	93.5 mm	1.08 "	1.76 in	27.5 mm	3.68 in	Chassis Mount	CE	3750 V	290 mA	264 V	90 V	Wire Leads	0.154 lb	70 g	Constant Current	50 °C	-20 C	SCP	17 W	58 V	40 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

290mA 40 ~ 58V Constant Current LED Driver AC DC Converter Topology 1 Output
