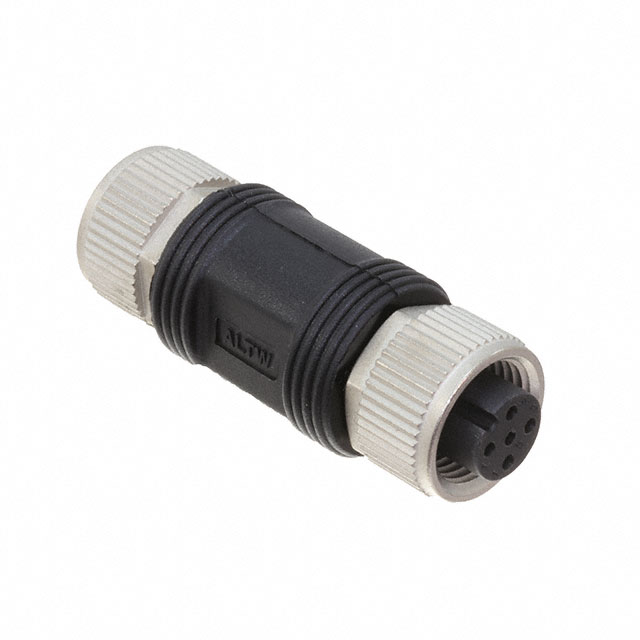

IA-A05F-A05F-0000-01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, I ADAPTOR, METAL, A CODING, 4A, 05 PINS, (END 1) FEMALE FEMALE, (END 2) FEMALE FEMALE, SCREW THREAD,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IA-A05F-A05F-0000-01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, I ADAPTOR, METAL, A CODING, 4A, 05 PINS, (END 1) FEMALE FEMALE, (END 2) FEMALE FEMALE, SCREW THREAD,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IA-A05F-A05F-0000-01

Connector Style	Standard
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Female Sockets
Features	Coupling Nut
Housing Material	Thermoplastic
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	5
Number of Positions (Convert To)	5
Orientation (Convert From)	A
Orientation (Convert To)	A
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded

IA Series

Part	Orientation (Convert From)	Features	Housing Material	Orientation (Convert To)	Convert From (Adapter End)	Shell Size - Insert (Convert From)	Shielding	Ingress Protection	Convert To (Adapter End)	Shell Size - Insert (Convert To) [custom]	Mounting Type	Number of Positions (Convert From)	Number of Positions (Convert To)	Connector Style
Amphenol LTW IA-A05F-A05F-0000-01	A	Coupling Nut	Thermoplastic	A	Female Sockets	M12	Unshielded	IP68 - Dust Tight Waterproof	Female Sockets	M12	Free Hanging (In-Line)	5	5	Standard
Amphenol LTW IA-A10M-A10M-0000-01	A		Thermoplastic	A	Male Pins	M12	Unshielded	IP68 - Dust Tight Waterproof	Male Pins	M12	Free Hanging (In-Line)		10	Standard
Amphenol LTW IA-A04F-A04F-0000-01	A	Coupling Nut	Thermoplastic	A	Female Sockets	M12	Unshielded	IP68 - Dust Tight Waterproof	Female Sockets	M12	Free Hanging (In-Line)	4	4	Standard
Amphenol LTW IA-A12M-A12M-0000-01	A		Thermoplastic	A	Male Pins	M12	Unshielded	IP68 - Dust Tight Waterproof	Male Pins	M12	Free Hanging (In-Line)	12	12	Standard
Amphenol LTW IA-A10F-A10F-0000-01	A	Coupling Nut	Thermoplastic	A	Female Sockets	M12	Unshielded	IP68 - Dust Tight Waterproof	Female Sockets	M12	Free Hanging (In-Line)		10	Standard
Amphenol LTW IA-A06F-A06F-0000-01	A	Coupling Nut	Thermoplastic	A	Female Sockets	M12	Unshielded	IP68 - Dust Tight Waterproof	Female Sockets	M12	Free Hanging (In-Line)	6	6	Standard
Amphenol LTW IA-A06M-A06M-0000-01	A		Thermoplastic	A	Male Pins	M12	Unshielded	IP68 - Dust Tight Waterproof	Male Pins	M12	Free Hanging (In-Line)	6	6	Standard
Amphenol LTW IA-A12F-A12F-0000-01	A	Coupling Nut	Thermoplastic	A	Female Sockets	M12	Unshielded	IP68 - Dust Tight Waterproof	Female Sockets	M12	Free Hanging (In-Line)	12	12	Standard
Amphenol LTW IA-A03M-A03M-0000-01	A		Thermoplastic	A	Male Pins	M12	Unshielded	IP68 - Dust Tight Waterproof	Male Pins	M12	Free Hanging (In-Line)	3		Standard
Amphenol LTW IA-A08M-A08M-0000-01	A		Thermoplastic	A	Male Pins	M12	Unshielded	IP68 - Dust Tight Waterproof	Male Pins	M12	Free Hanging (In-Line)	8	8	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.06
		10	$ 13.91
		25	$ 13.19
		50	$ 13.00
		100	$ 11.47
		250	$ 10.70
		500	$ 10.47
		1000	$ 9.94
Newark	Each	10	$ 13.19
		25	$ 12.11
		50	$ 10.81
		100	$ 9.95
		250	$ 9.66

Description

General part information

IA Series

Circular Connector Standard 5/5 Female Sockets/Female Sockets Free Hanging (In-Line)
